TaeguTec Cutting Tools - Metal Working Tools - Tooling System - DIN 69871

DIN69871-SEMC : DIN 6358 Combi shell mill arbors with DIN 69871 form AD taper shanks and coolant hole

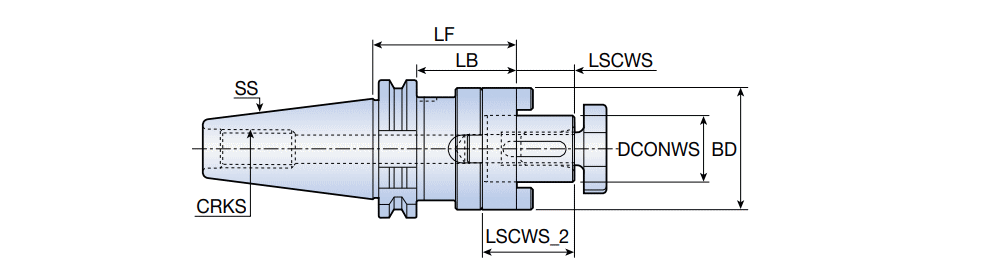

Designation	SS	DCONWS	BD	LF	LB	LSCWS	LSCWS_2	CRKS		d2	ClssID	LTA	CCTWS	CCFWS	LS	GICAT
DIN69871 30 SEMC 16X 50	30	16.00	32.00	50.00	30.9	17.00	27.00	M12	0.53	0.00~	71EAD3871D313 ~	40.00~	FDA ~	02 ~	47.8~	4601727
DIN69871 30 SEMC 22X 50	30	22.00	40.00	50.00	30.9	19.00	31.00	M12	0.61	0.00~	71EAD3871D313 ~	38.00~	FDA ~	02 ~	47.8~	4601728
DIN69871 40 SEMC 16X 55	40	16.00	32.00	55.00	35.9	17.00	27.00	M16	1.01	0.00~	71EAD3871D313 ~	45.00~	FDA ~	02 ~	68.4~	4601731
DIN69871 40 SEMC 16X100	40	16.00	32.00	100.00	80.9	17.00	27.00	M16	1.30	0.00~	71EAD3871D313 ~	90.00~	FDA ~	02 ~	68.4~	4601732
DIN69871 40 SEMC 22X100	40	22.00	40.00	100.00	80.9	19.00	31.00	M16	1.47	0.00~	71EAD3871D313 ~	88.00~	FDA ~	02 ~	68.4~	4601734
DIN69871 40 SEMC 22X55	40	22.00	40.00	55.00	35.9	19.00	31.00	M16	1.05	0.00~	71EAD3871D313 ~	43.00~	FDA ~	02 ~	68.4~	4601733
DIN69871 40 SEMC 27X 55	40	27.00	48.00	55.00	35.9	21.00	33.00	M16	1.25	0.00~	71EAD3871D313 ~	43.00~	FDA ~	02 ~	68.4~	4601735
DIN69871 40 SEMC 27X100	40	27.00	48.00	100.00	80.9	21.00	33.00	M16	1.89	0.00~	71EAD3871D313 ~	88.00~	FDA ~	02 ~	68.4~	4601736
DIN69871 40 SEMC 32X 60	40	32.00	58.00	60.00	45.9	24.00	38.00	M16	1.41	0.00~	71EAD3871D313 ~	36.00~	FDA ~	02 ~	68.4~	4601737
DIN69871 40 SEMC 32X100	40	32.00	58.00	100.00	80.9	24.00	38.00	M16	2.24	0.00~	71EAD3871D313 ~	86.00~	FDA ~	02 ~	68.4~	4601738
DIN69871 40 SEMC 40X 60	40	40.00	70.00	60.00	40.9	27.00	41.00	M16	1.63	0.00~	71EAD3871D313 ~	46.00~	FDA ~	02 ~	68.4~	4601739
DIN69871 50 SEMC 16X 55	50	16.00	32.00	55.00	35.9	17.00	27.00	M24	2.80	0.00~	71EAD3871D313 ~	45.00~	FDA ~	02 ~	101.8~	4601740
DIN69871 50 SEMC 16X100	50	16.00	32.00	100.00	80.9	17.00	27.00	M24	3.54	0.00~	71EAD3871D313 ~	90.00~	FDA ~	02 ~	101.8~	4601741
DIN69871 50 SEMC 22X 55	50	22.00	40.00	55.00	35.9	19.00	31.00	M24	2.82	0.00~	71EAD3871D313 ~	43.00~	FDA ~	02 ~	101.8~	4601742
DIN69871 50 SEMC 22X100	50	22.00	40.00	100.00	80.9	19.00	31.00	M24	3.60	0.00~	71EAD3871D313 ~	88.00~	FDA ~	02 ~	101.8~	4601743
DIN69871 50 SEMC 27X 55	50	27.00	48.00	55.00	35.9	21.00	33.00	M24	3.06	0.00~	71EAD3871D313 ~	43.00~	FDA ~	02 ~	101.8~	4601744
DIN69871 50 SEMC 27X100	50	27.00	48.00	100.00	80.9	21.00	33.00	M24	3.82	0.00~	71EAD3871D313 ~	88.00~	FDA ~	02 ~	101.8~	4601745
DIN69871 50 SEMC 32X 55	50	32.00	58.00	55.00	35.9	24.00	38.00	M24	3.23	0.00~	71EAD3871D313 ~	41.00~	FDA ~	02 ~	101.8~	4601746
DIN69871 50 SEMC 32X100	50	32.00	58.00	100.00	80.9	24.00	38.00	M24	4.32	0.00~	71EAD3871D313 ~	86.00~	FDA ~	02 ~	101.8~	4601747
DIN69871 50 SEMC 40X 55	50	40.00	70.00	55.00	35.9	27.00	41.00	M24	3.43	0.00~	71EAD3871D313 ~	41.00~	FDA ~	02 ~	101.8~	4601748
DIN69871 50 SEMC 40X100	50	40.00	70.00	100.00	80.9	27.00	41.00	M24	5.24	0.00~	71EAD3871D313 ~	86.00~	FDA ~	02 ~	101.8~	4601749
DIN69871 50 SEMC 50X 70	50	50.00	90.00	70.00	50.9	30.00	46.00	M24	4.58	0.00~	71EAD3871D313 ~	54.00~	FDA ~	02 ~	101.8~	4601750

Wrench not included
