TaeguTec Cutting Tools - Metal Working Tools

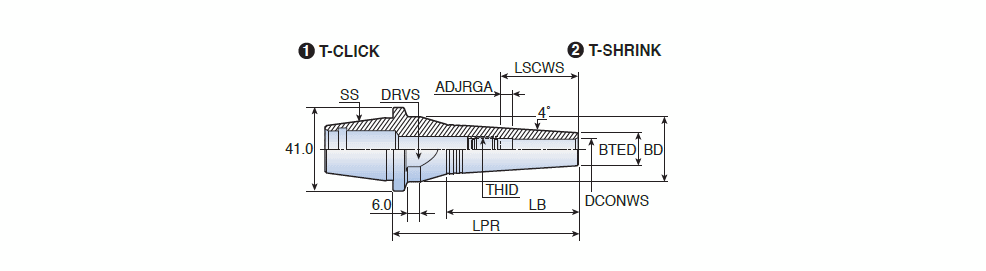

ER-SRF : Thermal shrinking chucks with quick change T-CLICK adaptation for solid carbide tools

Related holder for : FSM 4080M

Designation	SS	DCONWS	BTED	BD	LPR	LB	ADJRGA	Lmin	LSCWS	THID	a	Key	T		Shank	ClssID	LTA	GICAT	GIREM	giic	GICODE
ER32 SRF 8X50	32 SRF	8.00	32.00	32.00	50.00	33.00	6.00	25.0~	31.0	M10	4.0~	5.0~	27.0	0.23	C ~	71EAD3871D313 ~	50.00~	4651022		0
ER32 SRF 8X85	32 SRF	8.00	32.00	32.00	85.00	60.50	6.00	25.0~	31.0	M10	4.0~	5.0~	27.0	0.31	C ~	71EAD3871D313 ~	50.00~	4651023		0

Tightening torque: 24 kg x m
