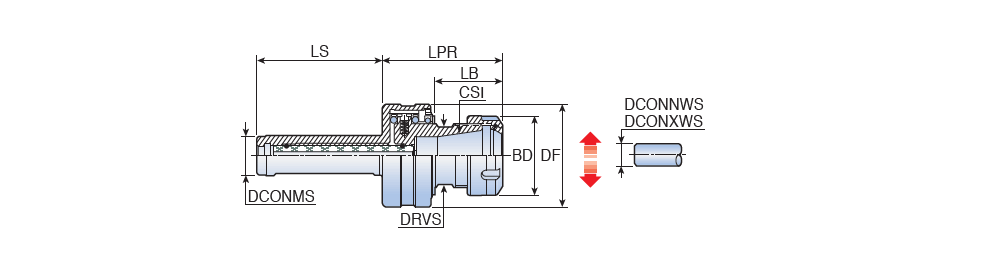

GFI ST-ER (Reamer Chuck) : Floating reamer DIN 6499 ER collet chucks with straight shanks

Related holder for : EROH 32-13.0

Designation	DCONMS	CSI	DCONNWS	DCONXWS	BD	DF	LPR	LB	LS	RFl	DRVS		d2	ClssID	LTA	GICAT	GIREM	giic	GICODE
GFI ST25 ER32	25	ER32	2.00	20.00	50.00	65.00	76.90	45.9	80.00	1.6	36.0	1.21	0.00~	71EAD3871D313 ~	63.91~	4601962		0

Max. 2,000RPM
