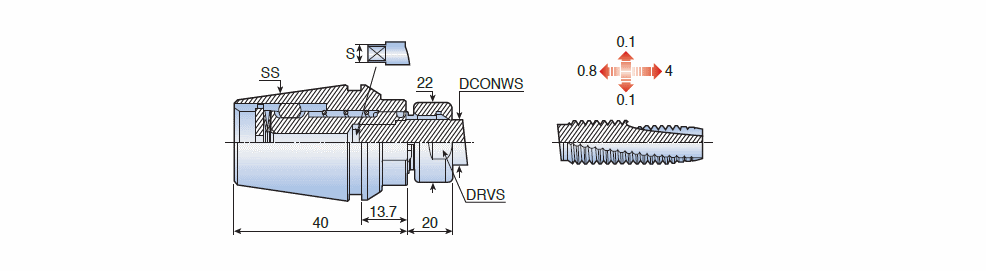

GTIN ER-JIS (TAPPING) : Tapping collets of JIS type taps with tension & compression floating mechanism for ER 32 collet chucks
 IT_SURFACE HARDNESS 58~60HRC                       IT_N5
  DesignationSS DCONWS Tap min Tap max S DRVS ClssID LTA GICATGIREMgiicGICODE
  GTIN ER32 JIS 5.00X4.00 ER32 5.00M4 M4 4.0020.00.23726F59BDC3B08 ~33.00~4651067 0
  GTIN ER32 JIS 6.00X4.50 ER32 6.00M6 M6 4.5020.00.22726F59BDC3B08 ~33.00~4651069 0
  GTIN ER32 JIS 6.20X5.00 ER32 6.20M8 M8 5.0020.00.22726F59BDC3B08 ~33.00~4651070 0
  GTIN ER32 JIS 7.00X5.50 ER32 7.00M10 M10 5.5020.00.22726F59BDC3B08 ~33.00~4651071 0
  GTIN ER32 JIS 8.50X6.50 ER32 8.50M12 M12 6.5020.00.22726F59BDC3B08 ~33.00~4651072 0
  GTIN ER32 JIS 10.50X8.00 ER32 10.50M14 M14 8.0020.00.22726F59BDC3B08 ~33.00~4651073 0
  GTIN ER32 JIS 12.50X10.00 ER32 12.50M16 M16 10.0020.00.20726F59BDC3B08 ~33.00~4651074 0
No coolant should be induced through the tap collet, as it will cause malfunctioning of the mechanism
