TaeguTec Cutting Tools - Metal Working Tools - Tooling System - HSK DIN 69893

HSK A-ER-M(MINI) : DIN 6499 ER mini collet chucks with HSK DIN 69893 form A taper shanks

Related holder for : ER20 SRK 5X35

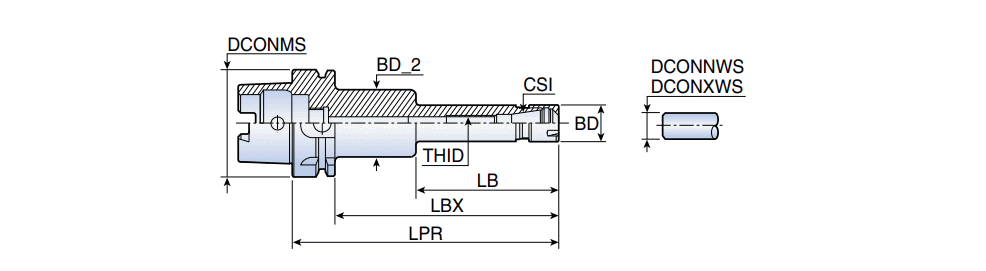

Designation	DCONMS	CSI	DCONNWS	DCONXWS	BD	BD_2	LPR	LBX	LB	THID		S1	d2	ClssID	LTA	CCTWS	CCFWS	GICAT	GIREM
HSK A 50 ER20X100 M	50	ER20	1.00	13.00	28.00	-	100.00	74.0	-	M12	0.61	20.00~	0.00~	71EAD3871D313 ~	88.50	SZD ~	02 ~	4601377
HSK A 63 ER20X100 M	63	ER20	1.00	13.00	28.00	-	100.00	74.0	-	M12	0.85	20.00~	0.00~	71EAD3871D313 ~	88.50	SZD ~	02 ~	4601382
HSK A 63 ER20X120 M	63	ER20	1.00	13.00	28.00	-	120.00	94.0	-	M12	0.92	20.00~	0.00~	71EAD3871D313 ~	108.50	SZD ~	02 ~	4601383
HSK A 63 ER20X160 M	63	ER20	1.00	13.00	28.00	45.00	160.00	134.0	85.00	M12	1.46	20.00~	0.00~	71EAD3871D313 ~	148.50	SZD ~	02 ~	4601384
HSK A 100 ER20X100 M	100	ER20	1.00	13.00	28.00	-	100.00	71.0	-	M12	2.22	20.00~	0.00~	71EAD3871D313 ~	88.50	SZD ~	02 ~	4601387	Balance to G6.3 at 12,000RPM
HSK A 100 ER20X160 M	100	ER20	1.00	13.00	28.00	50.00	160.00	131.0	85.00	M12	2.82	20.00~	0.00~	71EAD3871D313 ~	148.50	SZD ~	02 ~	4601388	Balance to G6.3 at 12,000RPM
