HSK A-ER-SHORT : Short DIN6499 ER collet chucks with HSK DIN 69893 form A taper shanks


 IT_BALANCE_20000 RPM  IT_BALANCE GRADE  IT_RUN-OUT A0.003  IT_SURFACE HARDNESS 58~60HRC  IT_N5
Related holder for : ER32 SEAL 8 AA

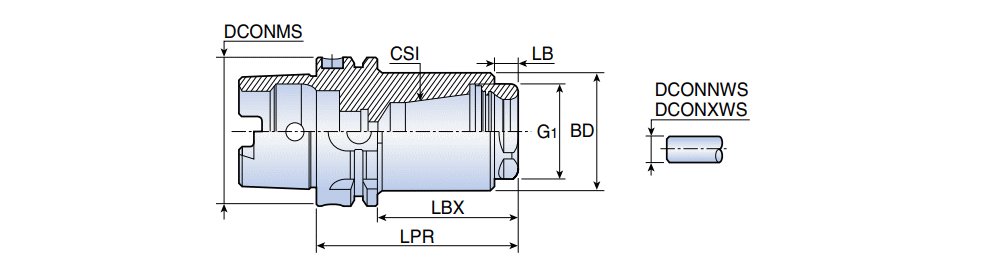

  Designation0rd DCONMS CSI DCONNWS DCONXWS BD LPR LBX LB G1 S1 d2 ClssID LTA CCTWS CCFWS GICATGIREMgiicGICODE
  HSK A 63 ER 32 SHORT 1.00~63 ER32 2.0020.0050.0084.5056.19.50M40X1.5 1.1332.00~0.00~71EAD3871D313 ~68.00~SZD ~02 ~4651084 0
  HSK A 100 ER 32 SHORT 2.00~100 ER32 2.0020.0050.0089.5060.59.50M40X1.5 2.5432.00~0.00~71EAD3871D313 ~76.50~SZD ~02 ~4651083 0
Equipped with nut ER16 MINI
