Home Page > Milling & Solid End mills > Helical Interpolation > TDB50X-CN

Milling & Solid End mills
Main Application

Helical Interpolation
Sub Application

Related Insert Related Holder

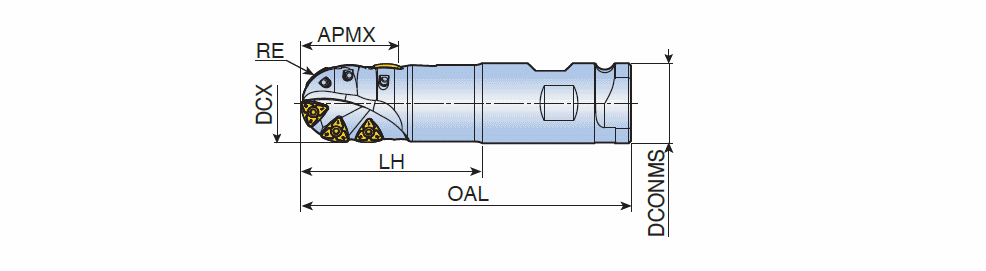

TDB50X-CN : Combination shank type holders with 6RBE 50-M inserts for rough ball tools

Designation	Tool sty	DCX	CICT	RE	DCONMS	OAL	LH	APMX	S1	KAPR		Shank	ClssID	MIID	LTA	GICAT	GIREM	giic	GICODE
TDB50X 59-CN50.8-L200	ENDMILL ~	50.00	6	25.00	50.80	200.00	110.00	59.00	50.00~	2.0~	2.56	CN ~	71E01A05D27A8 ~	6RBE 50-M	120.00~	3111237		0
TDB50X 69-CN50.8-L250	ENDMILL ~	50.00	7	25.00	50.80	250.00	160.00	69.00	50.00~	2.0~	3.23	CN ~	71E01A05D27A8 ~	6RBE 50-M	170.00~	6122172		0
