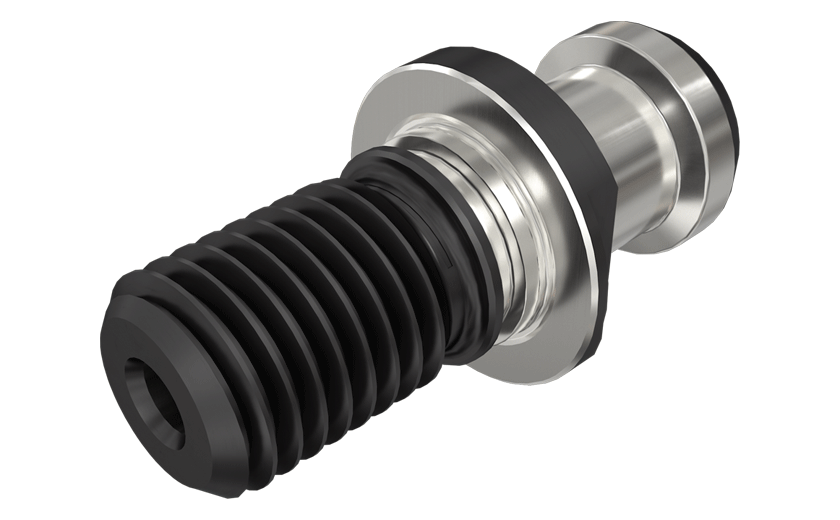

PS BT-JIS (PULL STUD) : BT Pull stud with JIS 63398 retention knob


Related Adaptors for : BT40 SRKIN 12X90
  DesignationSS CRKS BD_3 BD_2 BD CND LB OAL LB_2 BHTA Fig GICATGIREMgiicGICODE
  PS BT40 15 M16 JIS B 40 M16 19.0014.0017.005.523.0054.029.0015.014650656 0
  PS BT40 15 M16 JIS OB 40 M16 19.0014.0017.005.523.0054.029.0015.014650784 0
  PS BT40 15 M16 JIS OBO 40 M16 19.0014.0017.005.523.0054.029.0015.034605584 0

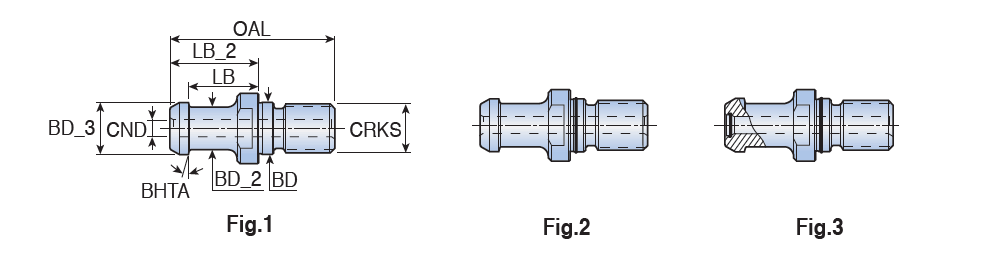

Fig. 1: Coolant holes only in items with a "B" suffix
Fig. 2: With external O-ring and coolant hole
Fig. 3: With external and internal O-rings and coolant hole
