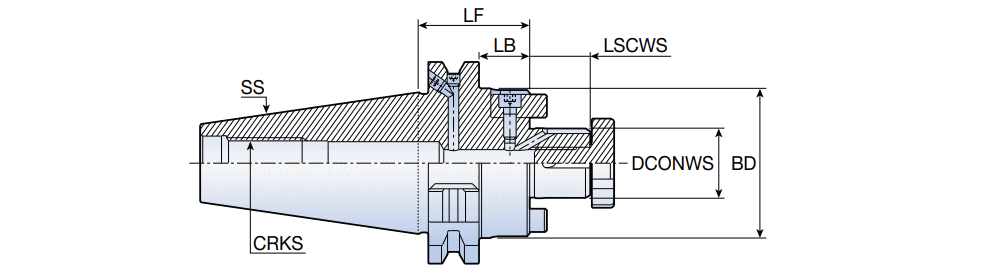

DIN69871-SEM-C : ISO 3937 Face mill arbors with coolant holes & DIN 69871 form ADB taper shanks

Designation	SS	DCONWS	BD	LF	LB	LSCWS	CRKS		d2	ClssID	LTA	CCTWS	CCFWS	LS	GICAT	GIREM
DIN69871 40 SEM 16X100 C	40	16.00	38.00	100.00	80.9	17.00	M16	1.48	0.00~	71EAD3871D313 ~	100.00~	FDA ~	02 ~	68.4~	4656336
DIN69871 40 SEM 16X35 C	40	16.00	38.00	35.00	15.9	17.00	M16	0.94	0.00~	71EAD3871D313 ~	35.00~	FDA ~	02 ~	68.4~	4656335
DIN69871 40 SEM 22X100 C	40	22.00	47.00	100.00	80.9	19.00	M16	0.94	0.00~	71EAD3871D313 ~	100.00~	FDA ~	02 ~	68.4~	4656338
DIN69871 40 SEM 22X35 C	40	22.00	47.00	35.00	15.9	19.00	M16	1.02	0.00~	71EAD3871D313 ~	35.00~	FDA ~	02 ~	68.4~	4656337
DIN69871 40 SEM 27X100 C	40	27.00	58.00	100.00	80.9	21.00	M16	2.32	0.00~	71EAD3871D313 ~	100.00~	FDA ~	02 ~	68.4~	4656340
DIN69871 40 SEM 27X60 C	40	27.00	58.00	60.00	40.9	21.00	M16	1.20	0.00~	71EAD3871D313 ~	60.00~	FDA ~	02 ~	68.4~	4656339
DIN69871 40 SEM 32X60 C	40	32.00	66.00	60.00	40.9	24.00	M16	1.69	0.00~	71EAD3871D313 ~	60.00~	FDA ~	02 ~	68.4~	4656341
DIN69871 50 SEM 16X100 C	50	16.00	38.00	100.00	80.9	17.00	M24	3.24	0.00~	71EAD3871D313 ~	123.50~	FDA ~	02 ~	101.8~	4656343
DIN69871 50 SEM 16X35 C	50	16.00	38.00	35.00	15.9	17.00	M24	2.68	0.00~	71EAD3871D313 ~	35.00~	FDA ~	02 ~	101.8~	4656342
DIN69871 50 SEM 22X100 C	50	22.00	47.00	100.00	80.9	19.00	M24	3.59	0.00~	71EAD3871D313 ~	100.00~	FDA ~	02 ~	101.8~	4656345
DIN69871 50 SEM 22X35 C	50	22.00	47.00	35.00	15.9	19.00	M24	2.77	0.00~	71EAD3871D313 ~	35.00~	FDA ~	02 ~	101.8~	4656344
DIN69871 50 SEM22X48X200C	50	22.00	48.00	200.00	181.0	19.00	M24	5.00	0.00~	71EAD3871D313 ~	200.00~	FDA ~	02 ~	101.8~	4605362	Symmetrical design. However, the family's balance values arenot guaranteed for this tool
DIN69871 50 SEM22X61X300C	50	22.00	61.00	300.00	281.0	19.00	M24	8.75	0.00~	71EAD3871D313 ~	300.00~	FDA ~	02 ~	101.8~	4605578	Symmetrical design. However, the family's balance values arenot guaranteed for this tool
DIN69871 50 SEM 27X100 C	50	27.00	58.00	100.00	80.9	21.00	M24	4.15	0.00~	71EAD3871D313 ~	100.00~	FDA ~	02 ~	101.8~	4656347
DIN69871 50 SEM 27X35 C	50	27.00	58.00	35.00	15.9	21.00	M24	2.88	0.00~	71EAD3871D313 ~	29.00~	FDA ~	02 ~	101.8~	4656346
DIN69871 50 SEM27X61X300C	50	27.00	61.00	300.00	281.0	21.00	M24	8.70	0.00~	71EAD3871D313 ~	300.00~	FDA ~	02 ~	101.8~	4604694	Symmetrical design. However, the family's balance values arenot guaranteed for this tool
DIN69871 50 SEM 32X100 C	50	32.00	66.00	100.00	80.9	24.00	M24	4.64	0.00~	71EAD3871D313 ~	100.00~	FDA ~	02 ~	101.8~	4656349
DIN69871 50 SEM 32X35 C	50	32.00	66.00	35.00	15.9	24.00	M24	3.00	0.00~	71EAD3871D313 ~	35.00~	FDA ~	02 ~	101.8~	4656348

If the B type option is required, the plug screw must be removed from the flange cooling hole (Use a 2mm hex key)
