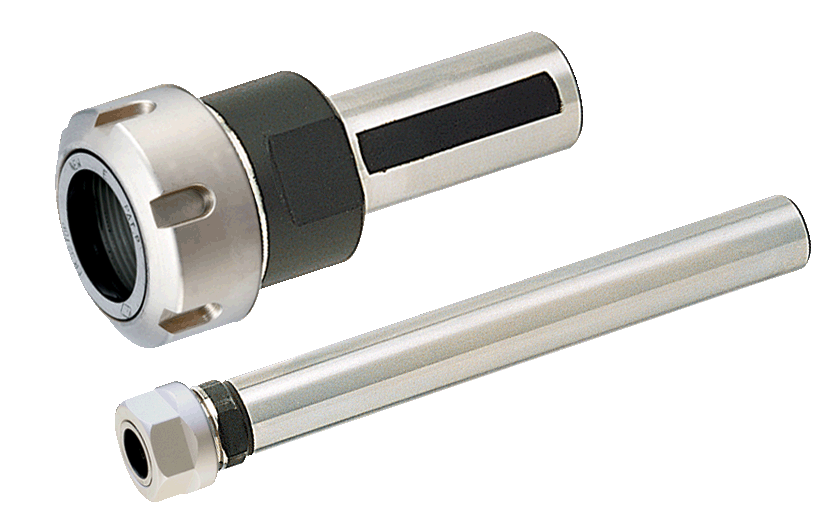

ST-ER(F) : DIN 6499 ER collet chucks with straight shanks

Related holder for : THC C32-16

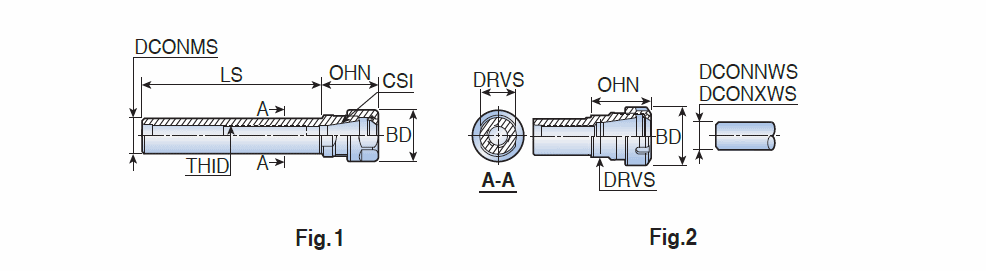

Designation	CSI	DCONMS	DCONWS	DCONXWS	BD	OHN	LS	THID	DRVS	Fig		S1	d2	ClssID	LTA	CCTMS	CCFMS	CCTWS	CCFWS	GICAT	GIREM	giic	GICODE
ST 16X 50 ER11 F	ER11	16.00	0.50	7.00	19.00	18.50	50.00	M8	13.0	1	0.06	11.00~	0.00~	71EAD3871D313 ~	13.90~	ZYL ~	10 ~	SZD ~	02 ~	4601484		0

F: Flat on the shank
