TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Step down machining

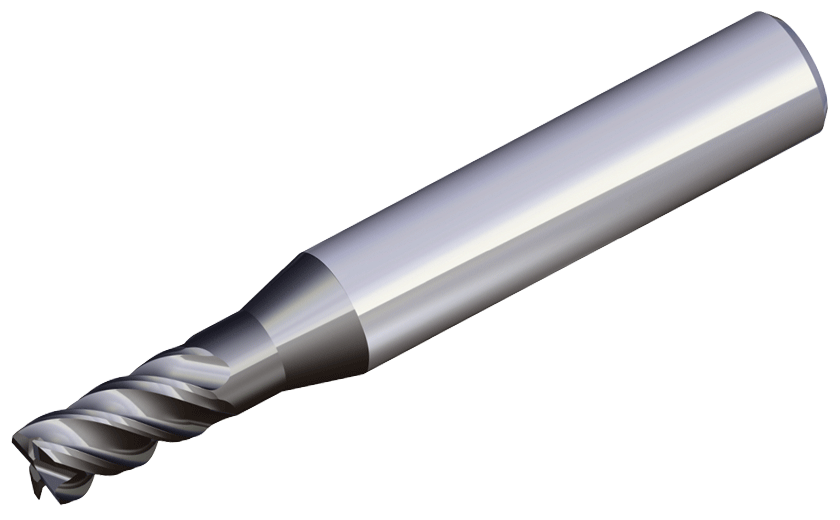

SED 4...U-C : 4 Flute solid carbide end mills for difficult-to-cut materials with chamfer & unequal spaced cutting edges in less vibration and high productivity

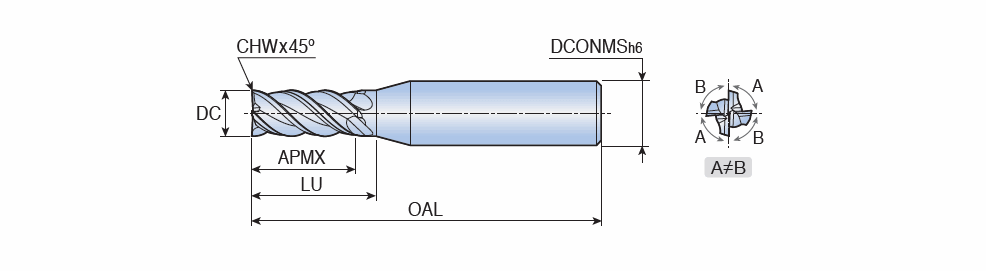

Designation	Tool sty	DC	CHW	OAL	LU	APMX	DCONMS	Type	Machine	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
SED 4040U-C0.1	SOLID TYPE ~	4.00	0.10	57.00	14.0	12.00	6.00	~	~	45.0~	C ~	5.00~	0.020	0.040	4~	71E01A05D27A8 ~	ZYL ~	01 ~	21.00~	6113427	1	TT5515
SED 4060U-C0.2	SOLID TYPE ~	6.00	0.20	57.00	-	15.00	6.00	~	~	45.0~	C ~	5.00~	0.025	0.070	4~	71E01A05D27A8 ~	ZYL ~	01 ~	21.00~	6113429	1	TT5515
SED 4080U-C0.3	SOLID TYPE ~	8.00	0.30	70.00	-	25.00	8.00	~	~	45.0~	C ~	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	ZYL ~	01 ~	34.00~	6113430	1	TT5515
SED 4100U-C0.3	SOLID TYPE ~	10.00	0.30	72.00	-	25.00	10.00	~	~	45.0~	C ~	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	32.00~	6113431	1	TT5515
SED 4120U-C0.4	SOLID TYPE ~	12.00	0.40	83.00	-	30.00	12.00	~	~	45.0~	C ~	5.00~	0.035	0.110	4~	71E01A05D27A8 ~	ZYL ~	01 ~	38.00~	6113432	1	TT5515
