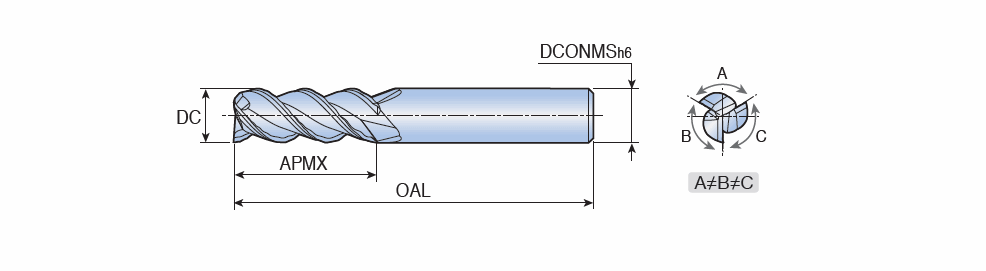

AWE 3..ML : Solid carbide end mills for aluminum machining with long waved cutting edges, unequal space of cutting edges & variable helix angles without vibration

Designation	Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
AWE 3060ML	SOLID TYPE ~	6.00	65.00	20.00	6.00	50.0~	C ~	5.00~	0.030	0.070	3~	71E01A05D27A8 ~	ZYL ~	01 ~	29.00~	4108492	1	UF10
AWE 3080ML	SOLID TYPE ~	8.00	75.00	20.00	8.00	50.0~	C ~	5.00~	0.030	0.090	3~	71E01A05D27A8 ~	ZYL ~	01 ~	39.00~	4108410	1	UF10
AWE 3100ML	SOLID TYPE ~	10.00	80.00	25.00	10.00	50.0~	C ~	5.00~	0.030	0.100	3~	71E01A05D27A8 ~	ZYL ~	01 ~	40.00~	4108493	1	UF10
AWE 3120ML	SOLID TYPE ~	12.00	95.00	30.00	12.00	50.0~	C ~	5.00~	0.030	0.120	3~	71E01A05D27A8 ~	ZYL ~	01 ~	50.00~	4108494	1	UF10
AWE 3140ML	SOLID TYPE ~	14.00	110.00	35.00	14.00	50.0~	C ~	5.00~	0.030	0.120	3~	71E01A05D27A8 ~	ZYL ~	01 ~	65.00~	4108495	1	UF10
AWE 3160ML	SOLID TYPE ~	16.00	110.00	40.00	16.00	50.0~	C ~	5.00~	0.050	0.140	3~	71E01A05D27A8 ~	ZYL ~	01 ~	62.00~	4108411	1	UF10
AWE 3180ML	SOLID TYPE ~	18.00	125.00	45.00	18.00	50.0~	C ~	5.00~	0.050	0.150	3~	71E01A05D27A8 ~	ZYL ~	01 ~	0.00~	4108496	1	UF10
AWE 3200ML	SOLID TYPE ~	20.00	125.00	45.00	20.00	50.0~	C ~	5.00~	0.050	0.150	3~	71E01A05D27A8 ~	ZYL ~	01 ~	75.00~	4108497	1	UF10
