TERNS-10/12/16 : End mills with double-sided round inserts of RNMU for general and Die & Mold application

COOLANT

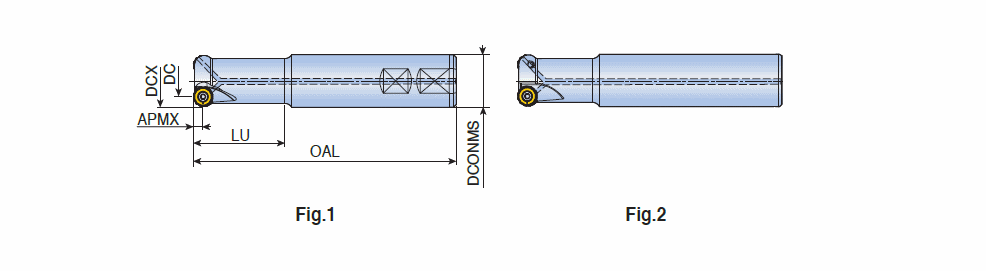

Designation	Tool sty	S1	DCX	DC	CICT	DCONMS	OAL	LU	APMX	Fig.	Shank	Arbor		HAND	KAPR	RMPX	PD	Insert	ClssID	MIID		RE	CCTMS	CCFMS	LTA	GICAT	GIREM	giic	GICODE
TERNS 225-25-10-L160	ENDMILL ~	10.00~	25.00	15.00	2	25.00	160.00	60.00	5.00	2	C	~	0.50	~	3.0~	1.10~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	104.00~	3113004		0
TERNS 225-32-10-L250	ENDMILL ~	10.00~	25.00	15.00	2	32.00	250.00	40.00	5.00	2	C	~	1.28	~	3.0~	1.10~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	200.00~	3113127		0
TERNS 226-25-10-L200	ENDMILL ~	10.00~	26.00	16.00	2	25.00	200.00	80.00	5.00	2	C	~	0.64	~	3.0~	1.10~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	144.00~	3113129		0
TERNS 325-25-10-L160	ENDMILL ~	10.00~	25.00	15.00	3	25.00	160.00	60.00	5.00	2	C	~	0.49	~	3.0~	1.10~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	104.00~	3113128		0
TERNS 332-32-10-L180	ENDMILL ~	10.00~	32.00	22.00	3	32.00	180.00	70.00	5.00	2	C	~	0.92	~	3.0~	0.90~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	120.00~	3113130		0
TERNS 332-32-10-L250	ENDMILL ~	10.00~	32.00	22.00	3	32.00	250.00	100.00	5.00	2	C	~	1.29	~	3.0~	0.90~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	190.00~	3113131		0
TERNS 432-32-10-L180	ENDMILL ~	10.00~	32.00	22.00	4	32.00	180.00	70.00	5.00	2	C	~	0.93	~	3.0~	0.90~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	120.00~	3113132		0
TERNS 432-32-10-L250	ENDMILL ~	10.00~	32.00	22.00	4	32.00	250.00	100.00	5.00	2	C	~	1.28	~	3.0~	0.90~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	190.00~	3113133		0
TERNS 433-32-10-L200	ENDMILL ~	10.00~	33.00	23.00	4	32.00	200.00	80.00	5.00	2	C	~	1.02	~	3.0~	0.90~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	140.00~	3113134		0
TERNS 433-32-10-L250	ENDMILL ~	10.00~	33.00	23.00	4	32.00	250.00	100.00	5.00	2	C	~	1.29	~	3.0~	0.90~	C ~	C2M-RN10 ~	71E01A05D27A8 ~	RNMU 1004-ML	O ~	5.00~	ZYL ~	01 ~	190.00~	3113135		0
TERNS 232-32-12-L	ENDMILL ~	12.00~	32.00	20.00	2	32.00	250.00	50.00	6.00	2	C	~	1.41	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	190.00~	3107948		0
TERNS 232-32-12-L150	ENDMILL ~	12.00~	32.00	20.00	2	32.00	150.00	50.00	6.00	2	C	~	0.79	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	90.00~	3112396		0
TERNS 232-32-12-L200	ENDMILL ~	12.00~	32.00	20.00	2	32.00	200.00	60.00	6.00	2	C	~	1.17	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	140.00~	3112397		0
TERNS 233-32-12-L200	ENDMILL ~	12.00~	33.00	21.00	2	32.00	200.00	50.00	6.00	2	C	~	1.10	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	140.00~	3112400		0
TERNS 233-32-12-L250	ENDMILL ~	12.00~	33.00	21.00	2	32.00	250.00	50.00	6.00	2	C	~	1.57	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	190.00~	3108512		0
TERNS 332-W32-12	ENDMILL ~	12.00~	32.00	20.00	3	32.00	160.00	60.00	6.00	1	W	~	0.81	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	10 ~	100.00~	3107949		0
TERNS 332-32-12-L200	ENDMILL ~	12.00~	32.00	20.00	3	32.00	200.00	70.00	6.00	2	C	~	1.05	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	140.00~	3112398		0
TERNS 332-32-12-L250	ENDMILL ~	12.00~	32.00	20.00	3	32.00	250.00	60.00	6.00	2	C	~	1.37	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	190.00~	3112399		0
TERNS 333-32-12-L200	ENDMILL ~	12.00~	33.00	21.00	3	32.00	200.00	70.00	6.00	2	C	~	1.07	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	140.00~	3112401		0
TERNS 333-32-12-L250	ENDMILL ~	12.00~	33.00	21.00	3	32.00	250.00	60.00	6.00	2	C	~	1.36	~	3.0~	1.40~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	190.00~	3112402		0
TERNS 340-W32-12	ENDMILL ~	12.00~	40.00	28.00	3	32.00	160.00	50.00	6.00	1	W	~	0.93	~	3.0~	1.30~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	10 ~	100.00~	3107950		0
TERNS 340-32-12-L250	ENDMILL ~	12.00~	40.00	28.00	3	32.00	250.00	50.00	6.00	2	C	~	1.50	~	3.0~	1.30~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	190.00~	3111815		0
TERNS 440-W32-12	ENDMILL ~	12.00~	40.00	28.00	4	32.00	160.00	50.00	6.00	1	W	~	0.90	~	3.0~	1.30~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	10 ~	100.00~	3107951		0
TERNS 440-32-12-L250	ENDMILL ~	12.00~	40.00	28.00	4	32.00	250.00	60.00	6.00	2	C	~	1.45	~	3.0~	1.30~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	190.00~	3112403		0
TERNS 450-32-12-L200	ENDMILL ~	12.00~	50.00	38.00	4	32.00	200.00	70.00	6.00	2	C	~	1.36	~	3.0~	1.00~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	140.00~	3112404		0
TERNS 550-32-12-L250	ENDMILL ~	12.00~	50.00	38.00	5	32.00	250.00	60.00	6.00	2	C	~	1.64	~	3.0~	1.00~	C ~	C2M-RN12 ~	71E01A05D27A8 ~	RNMU 1205-ML	O ~	6.00~	ZYL ~	01 ~	190.00~	3112405		0
TERNS 240-W32-16-L160	ENDMILL ~	16.00~	40.00	24.00	2	32.00	160.00	50.00	8.00	1	C	~	0.91	~	3.0~	1.40~	C ~	C2M-RN16 ~	71E01A05D27A8 ~	RNMU 1606-ML	O ~	8.00~	ZYL ~	10 ~	100.00~	3113007		0
TERNS 240-32-16-L180	ENDMILL ~	16.00~	40.00	24.00	2	32.00	180.00	70.00	8.00	2	C	~	1.02	~	3.0~	1.40~	C ~	C2M-RN16 ~	71E01A05D27A8 ~	RNMU 1606-ML	O ~	8.00~	ZYL ~	01 ~	120.00~	3113143		0
TERNS 240-32-16-L250	ENDMILL ~	16.00~	40.00	24.00	2	32.00	250.00	100.00	8.00	2	C	~	1.44	~	3.0~	1.40~	C ~	C2M-RN16 ~	71E01A05D27A8 ~	RNMU 1606-ML	O ~	8.00~	ZYL ~	01 ~	190.00~	3113144		0
TERNS 340-32-16-L180	ENDMILL ~	16.00~	40.00	24.00	3	32.00	180.00	70.00	8.00	2	C	~	1.00	~	3.0~	1.40~	C ~	C2M-RN16 ~	71E01A05D27A8 ~	RNMU 1606-ML	O ~	8.00~	ZYL ~	01 ~	120.00~	3113145		0
TERNS 340-32-16-L250	ENDMILL ~	16.00~	40.00	24.00	3	32.00	250.00	100.00	8.00	2	C	~	1.41	~	3.0~	1.40~	C ~	C2M-RN16 ~	71E01A05D27A8 ~	RNMU 1606-ML	O ~	8.00~	ZYL ~	01 ~	190.00~	3113146		0
