TaeguTec Cutting Tools - Metal Working Tools

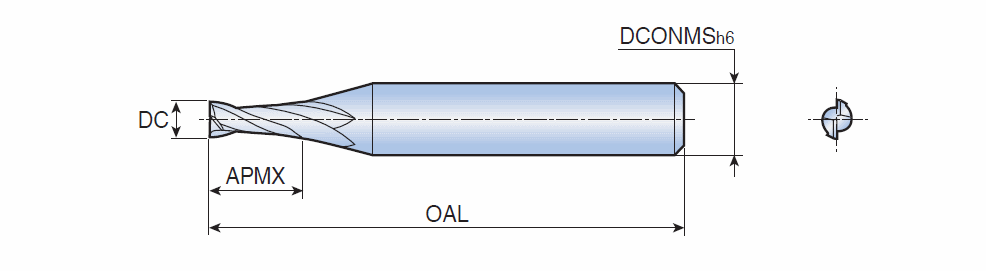

HMF 2 : Miniature solid carbide end mills of flat type with two flute for high speed machining

Designation	Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	LTA	GICAT	giic	Grade
HMF 2004-3	SOLID TYPE ~	0.40	40.00	0.80	3.00	30.0~	C ~	5.00~	0.010	0.020	2~	71E01A05D27A8 ~	25.00~	6112837	1	TT5515
HMF 2012-4	SOLID TYPE ~	1.20	40.00	4.00	4.00	30.0~	C ~	5.00~	0.010	0.030	2~	71E01A05D27A8 ~	20.00~	6112844	1	TT5515
HMF 2015-4	SOLID TYPE ~	1.50	40.00	4.00	4.00	30.0~	C ~	5.00~	0.010	0.030	2~	71E01A05D27A8 ~	20.00~	6112845	1	TT5515
