HES 2...XLT : Solid carbide end mills with extra long cutting length & 2 flute for general purpose

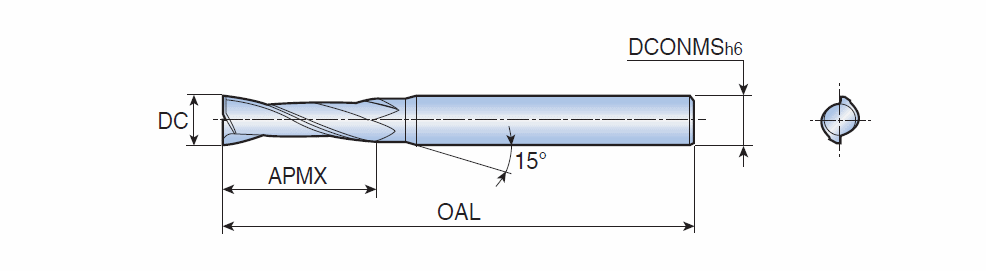

Designation	Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
HES 2030XLT(20X70)	SOLID TYPE ~	3.00	70.00	20.00	6.00	30.0~	C ~	5.00~	0.010	0.040	2~	71E01A05D27A8 ~	ZYL ~	01 ~	34.00~	6112982	1	TT5515
HES 2040XLT(20X70)	SOLID TYPE ~	4.00	70.00	20.00	6.00	30.0~	C ~	5.00~	0.020	0.050	2~	71E01A05D27A8 ~	ZYL ~	01 ~	34.00~	6112985	2	TT5525 TT5515
HES 2050XLT(25X80)	SOLID TYPE ~	5.00	80.00	25.00	6.00	30.0~	C ~	5.00~	0.020	0.060	2~	71E01A05D27A8 ~	ZYL ~	01 ~	44.00~	6112987	2	TT5525 TT5515
HES 2060XLT(25X80)	SOLID TYPE ~	6.00	80.00	25.00	6.00	30.0~	C ~	5.00~	0.030	0.076	2~	71E01A05D27A8 ~	ZYL ~	01 ~	44.00~	6112989	2	TT5525 TT5515
HES 2070XLT(35X90)	SOLID TYPE ~	7.00	90.00	35.00	8.00	30.0~	C ~	5.00~	0.030	0.076	2~	71E01A05D27A8 ~	ZYL ~	01 ~	0.00~	6112990	1	TT5515
HES 2080XLT(35X90)	SOLID TYPE ~	8.00	90.00	35.00	8.00	30.0~	C ~	5.00~	0.030	0.097	2~	71E01A05D27A8 ~	ZYL ~	01 ~	54.00~	6112992	2	TT5525 TT5515
HES 2090XLT(45X100)	SOLID TYPE ~	9.00	100.00	45.00	10.00	30.0~	C ~	5.00~	0.030	0.097	2~	71E01A05D27A8 ~	ZYL ~	01 ~	0.00~	6112993	1	TT5515
HES 2100XLT(45X100)	SOLID TYPE ~	10.00	100.00	45.00	10.00	30.0~	C ~	5.00~	0.030	0.107	2~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6112995	2	TT5525 TT5515
HES 2120XLT(55X110)	SOLID TYPE ~	12.00	110.00	55.00	12.00	30.0~	C ~	5.00~	0.040	0.108	2~	71E01A05D27A8 ~	ZYL ~	01 ~	65.00~	6112998	2	TT5525 TT5515
HES 2140XLT	SOLID TYPE ~	14.00	125.00	60.00	16.00	30.0~	C ~	5.00~	0.040	0.120	2~	71E01A05D27A8 ~	ZYL ~	01 ~	77.00~	6113000	2	TT5525 TT5515
HES 2160XLT	SOLID TYPE ~	16.00	125.00	70.00	16.00	30.0~	C ~	5.00~	0.040	0.130	2~	71E01A05D27A8 ~	ZYL ~	01 ~	88.00~	6113002	2	TT5525 TT5515
HES 2180XLT	SOLID TYPE ~	18.00	150.00	75.00	20.00	30.0~	C ~	5.00~	0.050	0.130	2~	71E01A05D27A8 ~	ZYL ~	01 ~	100.00~	6113004	2	TT5525 TT5515
HES 2200XLT	SOLID TYPE ~	20.00	150.00	75.00	20.00	30.0~	C ~	5.00~	0.050	0.130	2~	71E01A05D27A8 ~	ZYL ~	01 ~	100.00~	6113006	2	TT5525 TT5515
