HES 4...T-R : Solid carbide end mills of corner R type with medium & 4 flute for general purpose

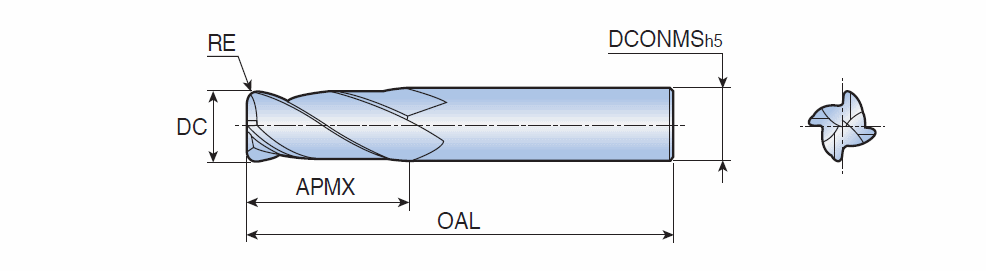

Designation	Tool sty	DC	RE	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
HES 4030T-R0.3	SOLID TYPE ~	3.00	0.30	47.00	10.00	6.00	30.0~	C ~	5.00~	0.010	0.040	4~	71E01A05D27A8 ~	ZYL ~	01 ~	19.60~	6113165	2	TT5525 TT5515
HES 4040T-R0.3	SOLID TYPE ~	4.00	0.30	47.00	12.00	6.00	30.0~	C ~	5.00~	0.020	0.050	4~	71E01A05D27A8 ~	ZYL ~	01 ~	19.80~	6113168	2	TT5525 TT5515
HES 4050T-R0.3	SOLID TYPE ~	5.00	0.30	52.00	15.00	6.00	30.0~	C ~	5.00~	0.020	0.060	4~	71E01A05D27A8 ~	ZYL ~	01 ~	22.90~	6113171	2	TT5525 TT5515
HES 4060T-R0.5	SOLID TYPE ~	6.00	0.50	52.00	15.00	6.00	30.0~	C ~	5.00~	0.030	0.070	4~	71E01A05D27A8 ~	ZYL ~	01 ~	19.00~	6113174	2	TT5525 TT5515
HES 4060T-R1.0	SOLID TYPE ~	6.00	1.00	52.00	15.00	6.00	30.0~	C ~	5.00~	0.030	0.070	4~	71E01A05D27A8 ~	ZYL ~	01 ~	19.00~	6113176	2	TT5525 TT5515
HES 4080T-R0.5	SOLID TYPE ~	8.00	0.50	60.00	20.00	8.00	30.0~	C ~	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6113181	2	TT5525 TT5515
HES 4080T-R1.0	SOLID TYPE ~	8.00	1.00	60.00	20.00	8.00	30.0~	C ~	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6113189	2	TT5525 TT5515
HES 4080T-R1.5	SOLID TYPE ~	8.00	1.50	60.00	20.00	8.00	30.0~	C ~	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6113191	2	TT5525 TT5515
HES 4080T-R2.0	SOLID TYPE ~	8.00	2.00	60.00	20.00	8.00	30.0~	C ~	5.00~	0.030	0.090	4~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6113192	1	TT5515
HES 4100T-R0.5	SOLID TYPE ~	10.00	0.50	68.00	25.00	10.00	30.0~	C ~	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	31.00~	6113195	2	TT5525 TT5515
HES 4100T-R1.0	SOLID TYPE ~	10.00	1.00	68.00	25.00	10.00	30.0~	C ~	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	31.00~	6113197	2	TT5525 TT5515
HES 4100T-R1.5	SOLID TYPE ~	10.00	1.50	68.00	25.00	10.00	30.0~	C ~	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	31.00~	6113199	2	TT5525 TT5515
HES 4100T-R2.0	SOLID TYPE ~	10.00	2.00	68.00	25.00	10.00	30.0~	C ~	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	31.00~	6113201	2	TT5525 TT5515
HES 4100T-R2.5	SOLID TYPE ~	10.00	2.50	68.00	25.00	10.00	30.0~	C ~	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	31.00~	6113202	1	TT5515
HES 4100T-R3.0	SOLID TYPE ~	10.00	3.00	68.00	25.00	10.00	30.0~	C ~	5.00~	0.030	0.100	4~	71E01A05D27A8 ~	ZYL ~	01 ~	31.00~	6113205	2	TT5525 TT5515
HES 4120T-R0.5	SOLID TYPE ~	12.00	0.50	76.00	30.00	12.00	30.0~	C ~	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	ZYL ~	01 ~	36.00~	6113207	2	TT5525 TT5515
HES 4120T-R1.0	SOLID TYPE ~	12.00	1.00	76.00	30.00	12.00	30.0~	C ~	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	ZYL ~	01 ~	36.00~	6113209	2	TT5525 TT5515
HES 4120T-R1.5	SOLID TYPE ~	12.00	1.50	76.00	30.00	12.00	30.0~	C ~	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	ZYL ~	01 ~	36.00~	6113210	1	TT5515
HES 4120T-R2.0	SOLID TYPE ~	12.00	2.00	76.00	30.00	12.00	30.0~	C ~	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	ZYL ~	01 ~	36.00~	6113213	2	TT5525 TT5515
HES 4120T-R2.5	SOLID TYPE ~	12.00	2.50	76.00	30.00	12.00	30.0~	C ~	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	ZYL ~	01 ~	36.00~	6113214	1	TT5515
HES 4120T-R3.0	SOLID TYPE ~	12.00	3.00	76.00	30.00	12.00	30.0~	C ~	5.00~	0.040	0.110	4~	71E01A05D27A8 ~	ZYL ~	01 ~	36.00~	6113217	2	TT5525 TT5515
HES 4160T-R0.5	SOLID TYPE ~	16.00	0.50	90.00	40.00	16.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	50.00~	6113219	2	TT5525 TT5515
HES 4160T-R1.0	SOLID TYPE ~	16.00	1.00	90.00	40.00	16.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	50.00~	6113221	2	TT5525 TT5515
HES 4160T-R1.5	SOLID TYPE ~	16.00	1.50	90.00	40.00	16.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	50.00~	6113236	2	TT5525 TT5515
HES 4160T-R2.0	SOLID TYPE ~	16.00	2.00	90.00	40.00	16.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	50.00~	6113224	2	TT5525 TT5515
HES 4160T-R3.0	SOLID TYPE ~	16.00	3.00	90.00	40.00	16.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	50.00~	6113226	2	TT5525 TT5515
HES 4200T-R0.5	SOLID TYPE ~	20.00	0.50	110.00	45.00	20.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6113228	2	TT5525 TT5515
HES 4200T-R1.0	SOLID TYPE ~	20.00	1.00	110.00	45.00	20.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6113230	2	TT5525 TT5515
HES 4200T-R1.5	SOLID TYPE ~	20.00	1.50	110.00	45.00	20.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6113231	1	TT5515
HES 4200T-R2.0	SOLID TYPE ~	20.00	2.00	110.00	45.00	20.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6113233	1	TT5515
HES 4200T-R3.0	SOLID TYPE ~	20.00	3.00	110.00	45.00	20.00	30.0~	C ~	5.00~	0.050	0.130	4~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6113235	2	TT5525 TT5515
