Home Page > Milling & Solid End mills > Solid Carbide End Mills > SBO 2...T

Milling & Solid End mills
Main Application

Solid Carbide End Mills
Sub Application

Related Holder
Machine Side

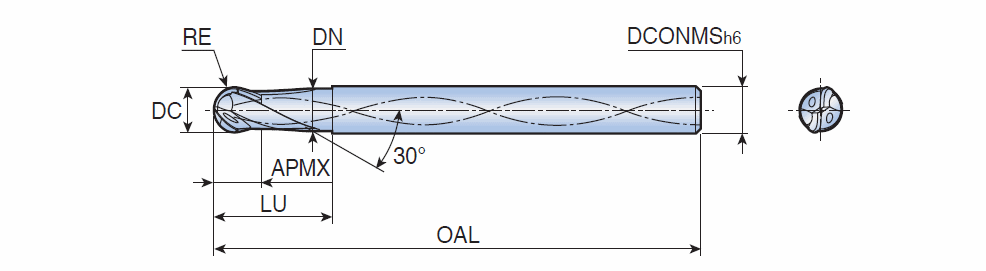

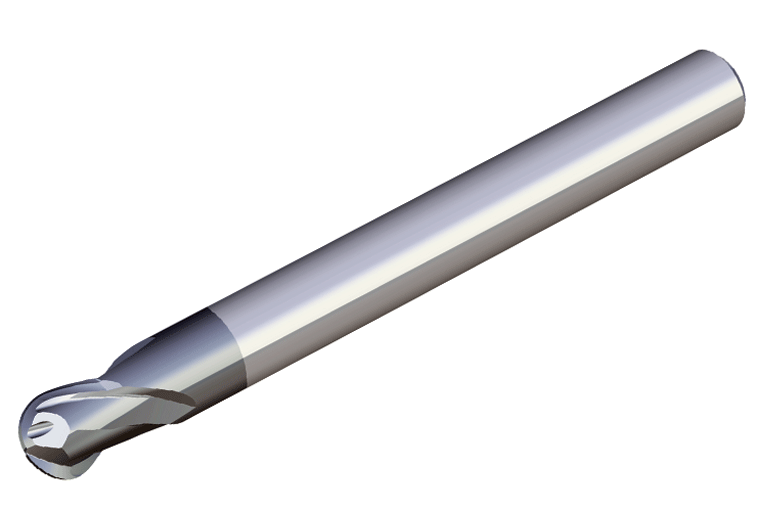

SBO 2...T : Solid carbide ball nose end mills with coolant holes & 2 flute for profiling

Designation	Tool sty	DC	RE	OAL	APMX	DCONMS	FHA	Shank	RMPX	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic	GICODE	Grade
SBO 2060T	SOLID TYPE ~	6.00	3.00	91.00	6.00	8.00	23.4	C ~	0.00~	2~	71E01A05D27A8 ~	ZYL ~	01 ~	55.00~	6113388		1		TT5525
SBO 2120T	SOLID TYPE ~	12.00	6.00	118.00	12.00	12.00	30.0	C ~	0.00~	2~	71E01A05D27A8 ~	ZYL ~	01 ~	73.00~	6113391		1		TT5525
