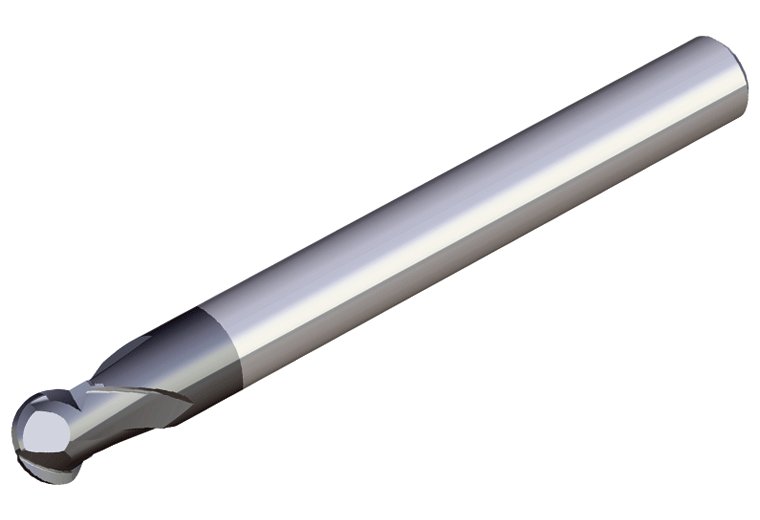

BES 4...T : Solid carbide spherical ball nose end mills with 4 flute for profiling


 EM FLUTES_4                                        EM HELIX ANGLE_30

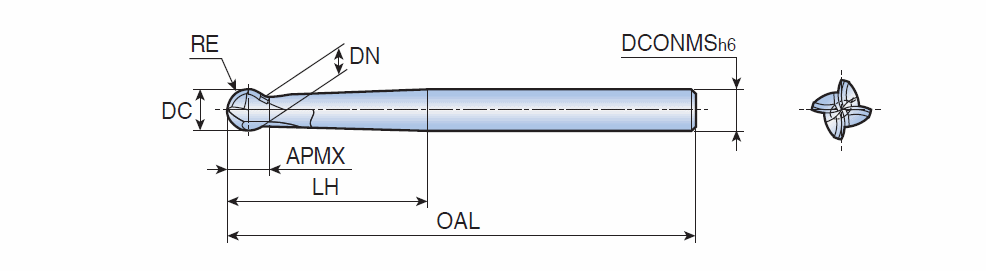

  DesignationTool sty DC RE DCONMS DN OAL APMX LH FHA Shank RMPX fz
(min)
fz
(max)
NOF ClssID GICATGIREMgiicGrade
  BES 4040T SOLID TYPE ~4.002.006.003.3580.004.1028.5030.0~C ~0.00~0.0000.0004~71E01A05D27A8 ~6113402 1TT5515
  BES 4050T SOLID TYPE ~5.002.506.004.1980.005.4038.0030.0~C ~0.00~0.0000.0004~71E01A05D27A8 ~6113403 1TT5515
  BES 4060T SOLID TYPE ~6.003.006.005.03100.006.1028.0030.0~C ~0.00~0.0000.0004~71E01A05D27A8 ~6113404 1TT5515
  BES 4080T SOLID TYPE ~8.004.008.006.71100.008.2033.0030.0~C ~0.00~0.0000.0004~71E01A05D27A8 ~6113405 1TT5515
  BES 4100T SOLID TYPE ~10.005.0010.008.39100.009.7040.0030.0~C ~0.00~0.0000.0004~71E01A05D27A8 ~6113406 1TT5515
  BES 4160T SOLID TYPE ~16.008.0016.0013.42155.0015.4058.0030.0~C ~0.00~0.0000.0004~71E01A05D27A8 ~6113408 1TT5515
For cutting speed recommendations, click on the required grade number related to specific item geometry
