AES 3..XL : 3 Flute solid carbide end mills of extra long length type for aluminum machining


 EM FLUTES_3                                        EM HELIX ANGLE_45

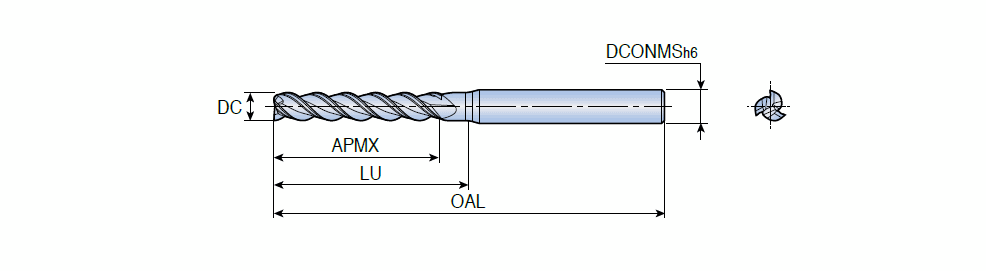

  DesignationTool sty DC DCONMS APMX LU OAL Type FHA Shank RMPX fz
(min)
fz
(max)
NOF ClssID LTA GICATGIREMgiicGICODEGrade
  AES 3060XL SOLID TYPE ~6.006.0030.00-80.00 A ~45.0~C ~5.00~0.0300.0703~71E01A05D27A8 ~44.00~4104303 1 UF10
  AES 3080XL SOLID TYPE ~8.008.0040.00-90.00 A ~45.0~C ~5.00~0.0300.0903~71E01A05D27A8 ~54.00~4104304 1 UF10
  AES 3100XL SOLID TYPE ~10.0010.0050.00-100.00 A ~45.0~C ~5.00~0.0300.1003~71E01A05D27A8 ~60.00~4104305 1 UF10
  AES 3120XL SOLID TYPE ~12.0012.0055.00-110.00 A ~45.0~C ~5.00~0.0300.1203~71E01A05D27A8 ~65.00~4104306 1 UF10
  AES 3160XL SOLID TYPE ~16.0016.0070.00-125.00 A ~45.0~C ~5.00~0.0500.1403~71E01A05D27A8 ~80.30~4104307 1 UF10
  AES 3180XL SOLID TYPE ~18.0020.0075.0085.00150.00 B ~45.0~C ~5.00~0.0500.1503~71E01A05D27A8 ~100.00~4107571 1 UF10
  AES 3180XL(80X150) SOLID TYPE ~18.0020.0080.0090.00150.00 B ~45.0~C ~5.00~0.0500.1503~71E01A05D27A8 ~100.00~4107491 1 UF10
  AES 3200XL SOLID TYPE ~20.0020.0075.00-150.00 A ~45.0~C ~5.00~0.0500.1503~71E01A05D27A8 ~100.00~4104308 1 UF10
  AES 3200XL(80X150) SOLID TYPE ~20.0020.0080.00-150.00 A ~45.0~C ~5.00~0.0500.1503~71E01A05D27A8 ~100.00~4107492 1 UF10
