TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Solid Carbide End Mills

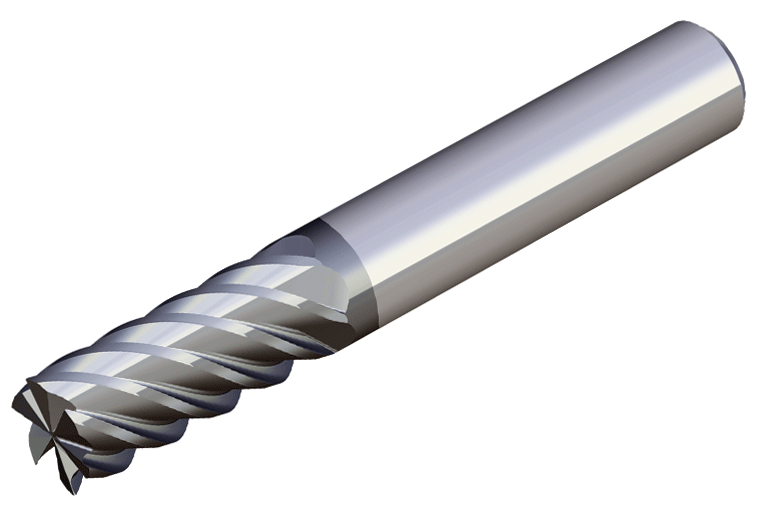

HES 6...T : Solid carbide end mills with medium cutting length & 6 flute for general purpose

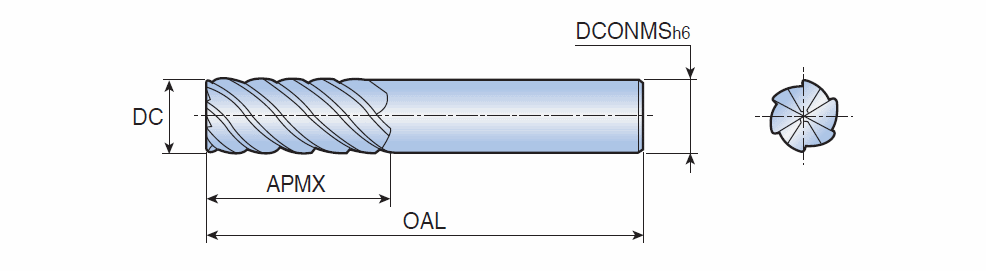

Designation	Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	giic	Grade
HES 6060T	SOLID TYPE ~	6.00	52.00	15.00	6.00	45.0~	C ~	5.00~	0.050	0.081	6~	71E01A05D27A8 ~	ZYL ~	01 ~	16.00~	6113439	1	TT5525
HES 6080T	SOLID TYPE ~	8.00	60.00	20.00	8.00	45.0~	C ~	5.00~	0.060	0.090	6~	71E01A05D27A8 ~	ZYL ~	01 ~	24.00~	6113441	1	TT5525
HES 6100T	SOLID TYPE ~	10.00	68.00	25.00	10.00	45.0~	C ~	5.00~	0.060	0.100	6~	71E01A05D27A8 ~	ZYL ~	01 ~	28.00~	6113442	1	TT5525
HES 6120T	SOLID TYPE ~	12.00	76.00	30.00	12.00	45.0~	C ~	5.00~	0.060	0.110	6~	71E01A05D27A8 ~	ZYL ~	01 ~	34.00~	6113443	1	TT5525
HES 6140T	SOLID TYPE ~	14.00	85.00	35.00	14.00	45.0~	C ~	5.00~	0.070	0.120	6~	71E01A05D27A8 ~	ZYL ~	01 ~	40.00~	6113444	1	TT5525
HES 6160T	SOLID TYPE ~	16.00	90.00	40.00	16.00	45.0~	C ~	5.00~	0.070	0.141	6~	71E01A05D27A8 ~	ZYL ~	01 ~	42.00~	6113445	1	TT5525
HES 6180T	SOLID TYPE ~	18.00	110.00	45.00	18.00	45.0~	C ~	5.00~	0.070	0.144	6~	71E01A05D27A8 ~	ZYL ~	01 ~	62.00~	6113446	1	TT5525
HES 6200T	SOLID TYPE ~	20.00	110.00	45.00	20.00	45.0~	C ~	5.00~	0.070	0.144	6~	71E01A05D27A8 ~	ZYL ~	01 ~	60.00~	6113447	1	TT5525
