TaeguTec Cutting Tools - Metal Working Tools - Thread Making - External Thread Milling

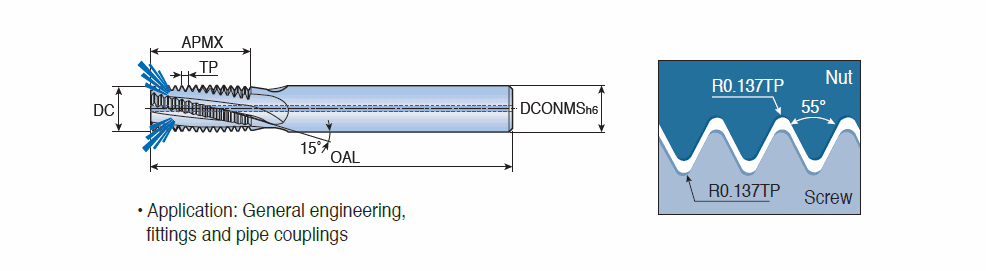

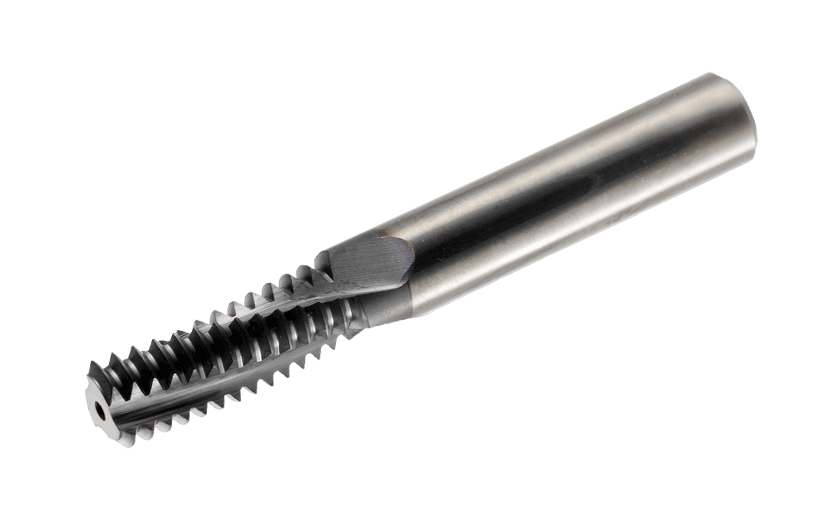

MTECZ-W : Solid carbide threading end mills with coolant holes located in the flutes for internal or external BSP/BSF threads

Designation	TPI	TDZ	DCONMS	DC	NOF	APMX	OAL	HAND	ClssID	CCMS		CZCMS	FTDZ	fz (max)	fz (min)	LTA	Shank	THFT	TPIEN***	TP	TTP	TTP_DF2		ZAX	LU	GICAT	giic	Grade
MTECZ 1616D38 11W	11.0	G	16.00	16.00	4	38.10	101.00	R ~	71EF07E083383 ~	ZYL01G1600h$06 ~	Y ~	1600 ~	G>1 ~	0.210~	0.040~	53.00~	C ~	WH55 ~	BSP(G) ~	-~	BOTH ~	- ~	0.06~	15~	38.1~	6346396	1	TT9030
MTECZ 12109D28 11W	11.0	-	12.00	10.90	4	28.90	84.00	R ~	71EF07E083383 ~	ZYL01G1200h$06 ~	Y ~	1200 ~	~	0.120~	0.030~	39.00~	C ~	WH55 ~	BSP(G) ~	-~	BOTH ~	- ~	0.24~	16~	0.0~	6214627	1	TT9030
MTECZ 10086D24 12W	12.0	-	10.00	8.60	4	24.40	73.00	R ~	71EF07E083383 ~	ZYL01G1000h$06 ~	Y ~	1000 ~	~	0.110~	0.030~	33.00~	C ~	WH55 ~	BSP(G) ~	-~	BOTH ~	- ~	0.10~	12~	0.0~	6214626	1	TT9030
MTECZ 1616E26 14W	14.0	G1/2-7/8	16.00	16.00	5	26.30	101.00	R ~	71EF07E083383 ~	ZYL01G1600h$06 ~	Y ~	1600 ~	G1/2-7/8 ~	0.210~	0.040~	53.00~	C ~	WH55 ~	BSP(G) ~	-~	BOTH ~	- ~	0.06~	11~	1.0~	6342584	1	TT9030
MTECZ 1010D16 19W	19.0	G1/4-3/8	10.00	10.00	4	16.70	73.00	R ~	71EF07E083383 ~	ZYL01G1000h$06 ~	Y ~	1000 ~	G1/4-3/8 ~	0.110~	0.030~	33.00~	C ~	WH55 ~	BSP(G) ~	-~	BOTH ~	- ~	0.24~	14~	0.7~	6342583	1	TT9030
MTECZ 08078C14 28W	28.0	G1/8	14.00	7.80	3	14.10	64.00	R ~	71EF07E083383 ~	ZYL01F8000h$06 ~	Y ~	8000 ~	G1/8 ~	0.100~	0.030~	28.00~	C ~	WH55 ~	BSP(G) ~	-~	BOTH ~	- ~	0.07~	12~	0.6~	6342582	1	TT9030
