TaeguTec Cutting Tools - Metal Working Tools - Thread Making - Internal Thread Milling

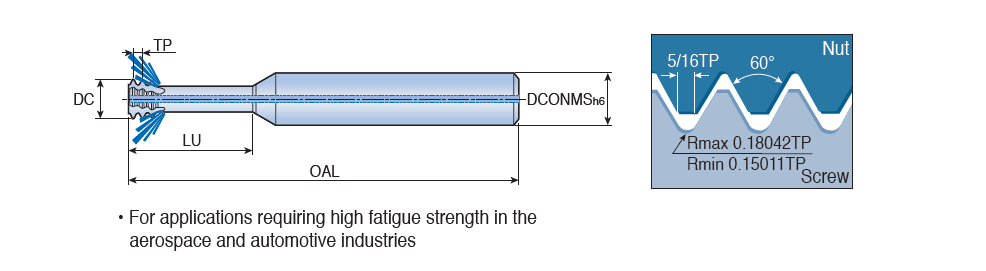

MTECS-UNJ : Short solid carbide threading end mills for small diameter internal UNJ threads with short threading contact

Designation	TPI	UNC	UNF	DCONMS	DC	LU	OAL	NOF	HAND	ClssID	CCMS		CZCMS	FTDZ	fz (max)	fz (min)	LTA	Shank	TDZ	THFT	TTP	TTP_DF2		ZAX	GICAT	GIREM	giic	Grade
MTECS08069C24 16UNJ	16.0	3/8		8.00	6.90	24.00	64.00	3	R ~	71EF07E083383 ~	ZYL01F8000h$06 ~	Y ~	8000 ~	3/8-16 UNJC ~	0.000~	0.000~	28.00~	C ~	~	NJ60 ~	INT ~	- ~	0.03~	1~	6342601		1	TT9030
MTECS 0808C28 20UNJ	20.0		7/16	8.00	8.00	28.00	64.00	3	R ~	71EF07E083383 ~	ZYL01F8000h$06 ~	Y ~	8000 ~	7/16-20 UNJF ~	0.000~	0.000~	28.00~	C ~	~	NJ60 ~	INT ~	- ~	0.04~	1~	6346412		1	TT9030
MTECS08051C16 28UNJ	28.0		1/4	8.00	5.10	16.00	64.00	3	R ~	71EF07E083383 ~	ZYL01F8000h$06 ~	Y ~	8000 ~	1/4-28 UNJF ~	0.000~	0.000~	28.00~	C ~	~	NJ60 ~	INT ~	- ~	0.03~	1~	6342600		1	TT9030
MTECS06033C10 32UNJ	32.0	8	10	6.00	3.30	10.50	58.00	3	R ~	71EF07E083383 ~	ZYL01F6000h$06 ~	Y ~	6000 ~	8-32 UNJC ~	0.000~	0.000~	22.00~	C ~	~	NJ60 ~	INT ~	- ~	0.02~	1~	6342599	Without coolant hole	1	TT9030
