TFMRX-R-20 : Face mills with positive round inserts of RXM(H)X for general profiling

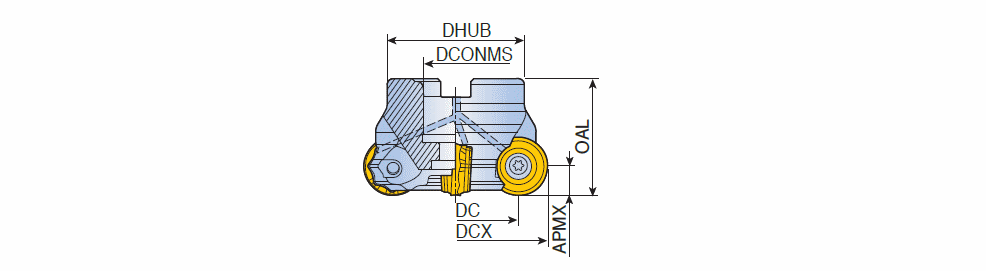

Designation	Tool sty	DCX	DC	CICT	DCONMS	DHUB	OAL	APMX	Arbor		S1	RE	RMPX	HAND	KAPR	PD	Insert	Mtg. Ref	ClssID	MIID		CCTMS	CCFMS	LTA	GICAT
TFMRX 463-22R-20	FACE MILL ~	63.00	43.00	4	22.00	47.00	40.00	10.00	A	0.33	20.00~	10.00~	11.50~	~	3.0~	C ~	CM-RX20 ~	LH M10X1.5X25 ~	71E01A05B627B ~	RXMX 2006-M	O	FDA ~	02 ~	40.00~	3104118
TFMRX 580-25.4R-20	FACE MILL ~	80.00	60.00	5	27.00	58.00	50.00	10.00	A	0.91	20.00~	10.00~	9.00~	~	3.0~	C ~	CM-RX20 ~	LH M12X1.75X30 ~	71E01A05B627B ~	RXMX 2006-M	O	FDA ~	02 ~	50.00~	6162294
TFMRX 580-27R-20	FACE MILL ~	80.00	60.00	5	27.00	58.00	50.00	10.00	A	0.75	20.00~	10.00~	9.00~	~	3.0~	C ~	CM-RX20 ~	LH M12X1.75X30 ~	71E01A05B627B ~	RXMX 2006-M	O	FDA ~	02 ~	50.00~	3104119
TFMRX 6100-32R-20	FACE MILL ~	100.00	80.00	6	32.00	85.00	50.00	10.00	B	0.98	20.00~	10.00~	7.50~	~	3.0~	C ~	CM-RX20 ~	- ~	71E01A05B627B ~	RXMX 2006-M	X	FDA ~	02 ~	50.00~	3104120
TFMRX 7125-40R-20	FACE MILL ~	125.00	105.00	7	40.00	85.00	63.00	10.00	B	2.44	20.00~	10.00~	5.50~	~	3.0~	C ~	CM-RX20 ~	- ~	71E01A05B627B ~	RXMX 2006-M	X	FDA ~	02 ~	63.00~	3104121
TFMRX 8160-40R-20	FACE MILL ~	160.00	140.00	8	40.00	110.00	63.00	10.00	C	3.71	20.00~	10.00~	4.00~	~	3.0~	C ~	CM-RX20 ~	- ~	71E01A05B627B ~	RXMX 2006-M	X	SPK ~	02 ~	63.00~	3104038

Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
