TaeguTec Cutting Tools - Metal Working Tools

APKT 1204 R/PER-EL : Super positive inserts for stainless steels and super alloys with 2 cutting edges of APKT 12 for 90° shoulders

TT3540&TT9540 : Available upon customer request.

Related insert for : TFM90AP 563-22R-12

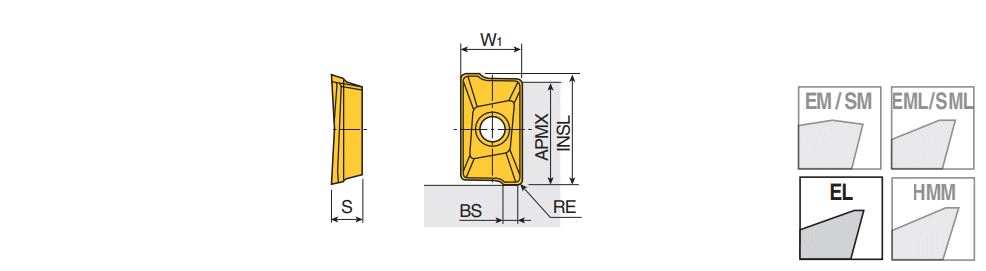

Designation	INSL	W1	BS	S	RE	APMX	S1	S2	ap (min)	ap (max)	fz (max)	fz (min)	SF	CEDC	Insert	SC	ClssID	CB	GRDMFG	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
APKT 120430R-EL	13.60	8.30	-	4.60	3.00	11.90	12.00~	~	3.50	10.00	0.060	0.030	M6 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	EL ~	TT8080 ~	6152218	2	TT8080 TT9080
APKT 120432R-EL	13.60	8.30	-	4.50	3.20	11.90	12.00~	2.00000 ~	3.50	10.00	0.060	0.030	M6 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	EL ~	TT9080 ~	5611968	1	TT9080
APKT 1204 PER-EL	14.60	8.30	1.60	4.76	0.80	12.00	12.00~	2.00000 ~	3.50	10.00	0.050	0.030	M6 ~	2~	CM-AP12 ~	A ~	71DD68D91938A ~	EL ~	TT8020 ~	5614921	4	TT8020 TT8080 TT9030 TT9080
