TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Rampdown

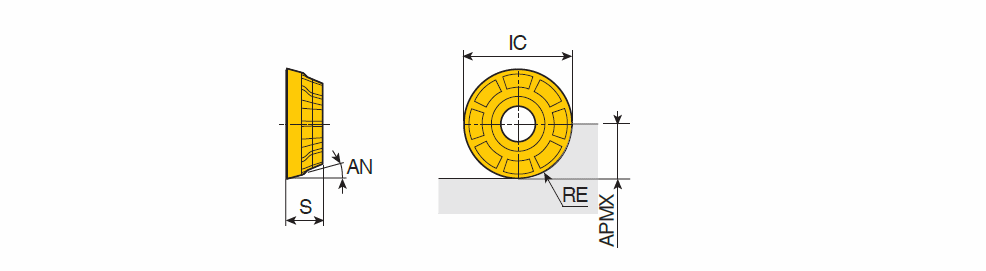

RXMX 10/12/16/20-M : Positive round inserts with medium geometry for general applications

Designation	IC	S	RE	APMX	AN	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	SC	ClssID	CEDC		CB	GRDMFG	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RXMX 1003-M	10.00	3.18	5.00	5.00	15.0	10.00~	1.50	4.00	0.130	0.065	~	CM-RX10 ~	R ~	71D1AA6635E76 ~	8~	U60 ~	M ~	TT6080 ~	5615294	5	TT8080 TT8020 TT7080 TT9080 TT6080
RXMX 12T3-M	12.00	3.97	6.00	6.00	15.0	12.00~	1.80	4.80	0.200	0.100	~	CM-RX12 ~	R ~	71D1AA6635E76 ~	8~	U60 ~	M ~	TT6080 ~	5615270	6	TT8080 TT8020 TT7080 TT9030 TT9080 TT6080
RXMX 1604-M	16.00	4.76	8.00	8.00	15.0	16.00~	2.40	6.40	0.250	0.125	~	CM-RX16 ~	R ~	71D1AA6635E76 ~	8~	U60 ~	M ~	TT6080 ~	5615271	6	TT8080 TT8020 TT7080 TT9030 TT9080 TT6080
RXMX 2006-M	20.00	5.85	10.00	10.00	15.0	20.00~	3.00	8.00	0.150	0.075	~	CM-RX20 ~	R ~	71D1AA6635E76 ~	8~	U60 ~	M ~	TT8020 ~	5615274	4	TT8020 TT8080 TT9030 TT9080
