TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills - Rampdown

RXMX 10/12/16-ML : Positive round inserts with sharp cutting edges for exotic materials

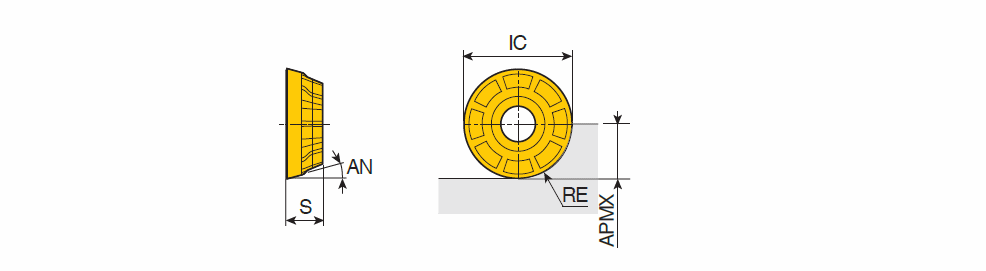

Designation	IC	S	RE	APMX	S1	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	CEDC		CB	GRDMFG	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
RXMX 1003-ML	10.00	3.18	5.00	5.00	10.00~	CM-RX10 ~	1.50	4.00	0.060	0.030	M7.5 ~	R ~	71D1AA6635E76 ~	8~	U40 ~	ML ~	TT8020 ~	5615288	4	TT8020 TT8080 TT9030 TT9080
RXMX 12T3-ML	12.00	3.97	6.00	6.00	12.00~	CM-RX12 ~	1.50	5.00	0.060	0.030	M7.5 ~	R ~	71D1AA6635E76 ~	8~	U40 ~	ML ~	TT8020 ~	5611128	3	TT8020 TT9030 TT9080
RXMX 1604-ML	16.00	4.76	8.00	8.00	16.00~	CM-RX16 ~	2.00	6.50	0.100	0.050	M7.5 ~	R ~	71D1AA6635E76 ~	8~	U40 ~	ML ~	TT8020 ~	5615284	3	TT8020 TT8080 TT9080
