Home Page > Milling & Solid End mills > Facing > SDMT 05-M

Milling & Solid End mills
Main Application

Facing
Sub Application

Related Tool

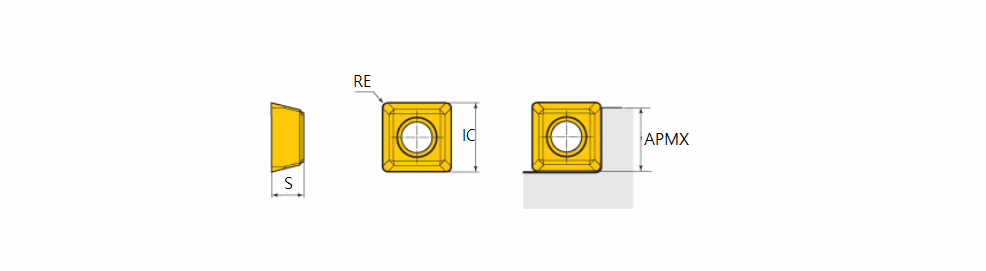

SDMT 05-M : Positive square inserts with 4 cutting edges for small parts machining

Designation	IC	S	RE	APMX	S1	CEDC	Insert	ap (min)	ap (max)	fz (min)	fz (max)	SF	SC	ClssID		CB	GRDMFG	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SDMT 050204-M	5.09	2.38	0.40	4.50	5.00~	4~	CQ-SD05 ~	1.35	3.60	0.030	0.060	M8 ~	S ~	71DD68D829217 ~	U60 ~	M ~	TT8020 ~	5615589		4		TT8020 TT8080 TT9030 TT9080
