TaeguTec Cutting Tools - Metal Working Tools - TEBL-04 : 6197294 - TEBL 520-20-04-L200
× Login Information

Family Designation: TEBL-04 High feed end mills with BLMP 04 inserts of 4 cutting edges in maximum depth of cut ap 0.5 mm


 COOLANT
Item Designation: TEBL 520-20-04-L200

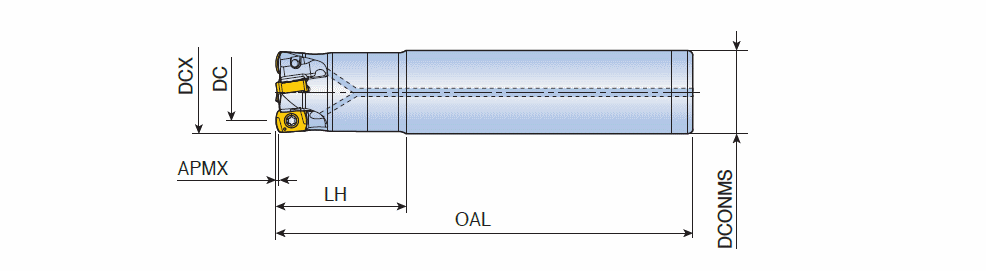

Tool sty DCX  DC CICT DCONMS OAL LH APMX  S1 KAPR Shank Rd e PD Insert Pocket ClssID MIID CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~20.0015.50520.00200.0025.00.50O ~4.00~1.0~C ~1.00~ ~RC ~0.45C4F-BL04 ~BLMP04 ~71E01A05D27A8 ~BLMP 0402R-M ZYL ~01 ~150.00~6197294 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
6197294 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6197294&cat=6197294&itemDesc=TEBL 520-20-04-L200"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('6197294', 'TEBL 520-20-04-L200' , 'DXF' , '6197294 - TEBL 520-20-04-L200');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=6197294&itemDesc=TEBL 520-20-04-L200"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

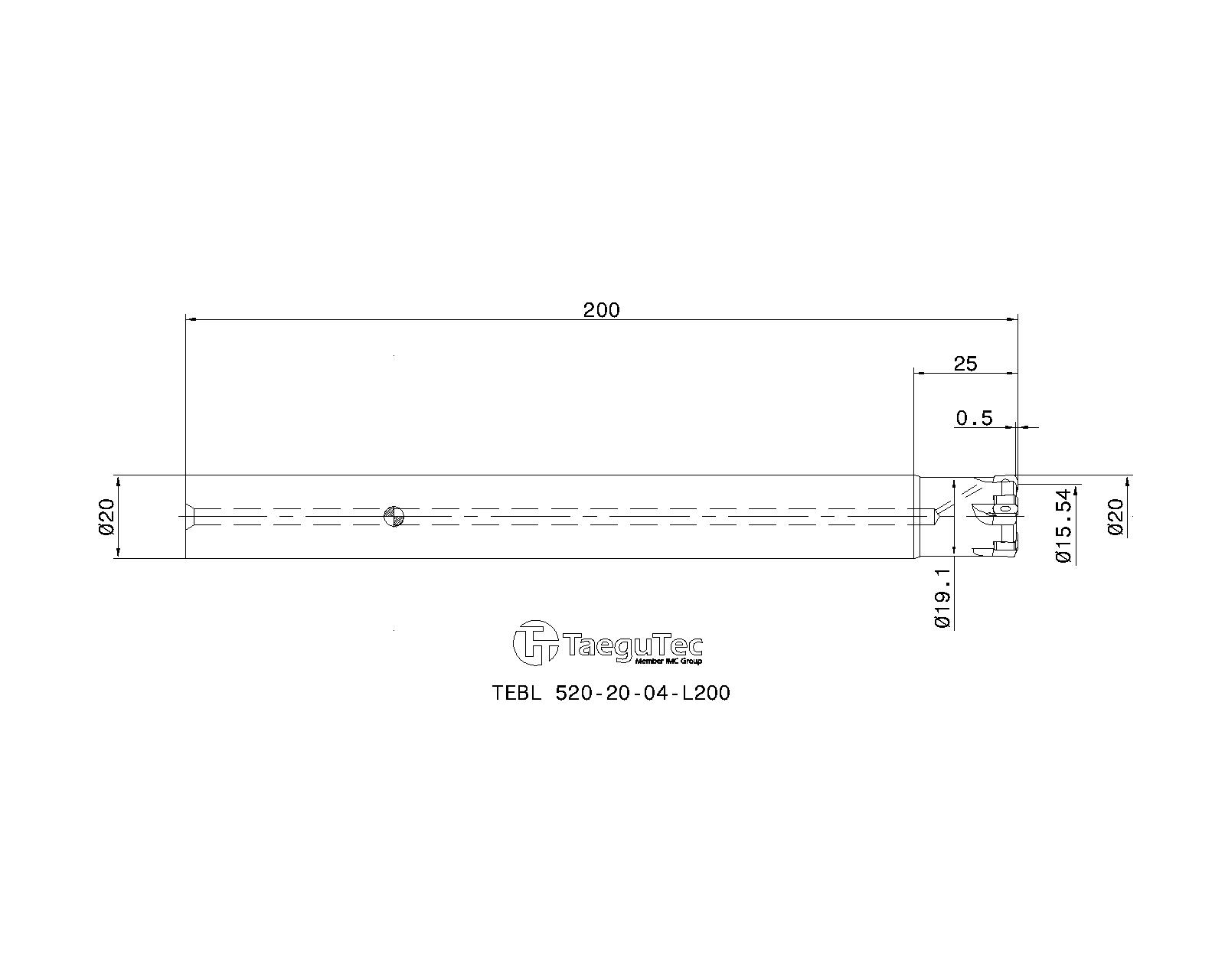

2D Representation
  Spare Parts
4351939TS 18041I/HGScrew
4353191T 6PTorx flag wrench
