Family Designation: TFMRX-R-10/12/16 Face mills with positive round inserts of RXM(H)X for general profiling & general machining


Item Designation: TFMRX 663-22R-12
Tool sty S1 DCX  DC CICT DCONMS DHUB OAL APMX Arbor  RMPX HAND KAPR PD Insert Mtg. Ref ClssID MIID  RE CCTMS CCFMS LTA GICATGIREMgiic
FACE MILL ~12.00~63.0051.00622.0047.0040.006.00A 0.385.00~ ~3.0~C ~CM-RX12 ~SH M10X1.5X25 ~71E01A05B627B ~RXMX 12T3-M O 6.00~FDA ~02 ~40.00~3104457 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3104457 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3104457&cat=3104457&itemDesc=TFMRX 663-22R-12"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3104457', 'TFMRX 663-22R-12' , 'DXF' , '3104457 - TFMRX 663-22R-12');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3104457&itemDesc=TFMRX 663-22R-12"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
3D Representation

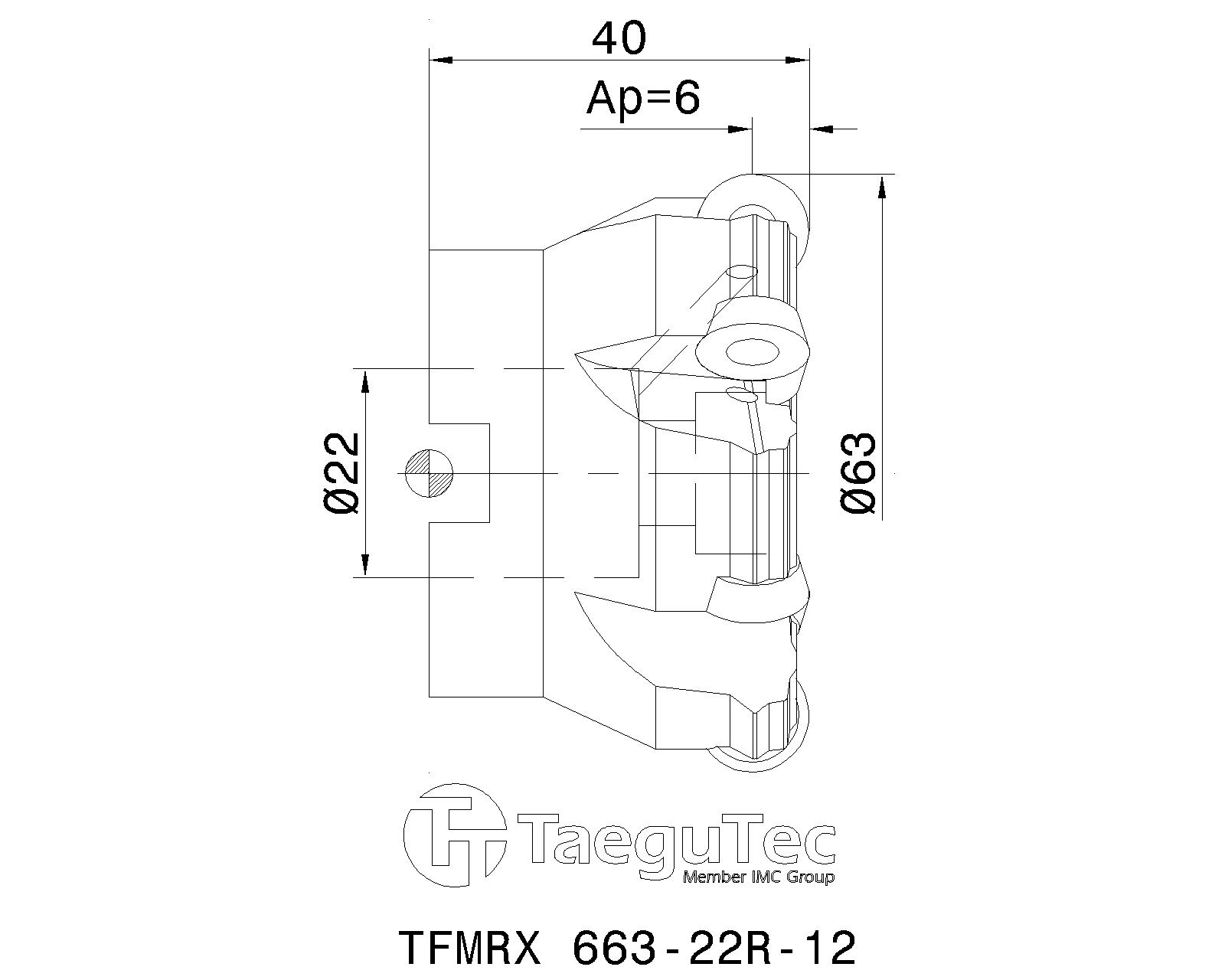

2D Representation
  Spare Parts
4351684TS 35085I/HG(M3.5X8.75MM)Screw
4351505LH M10X1.5X25Mounting bolt
4351469T-T15(A=80MM)COLORT-T wrench
