Family Designation: TFMRX-R-10/12/16 Face mills with positive round inserts of RXM(H)X for general profiling & general machining


Item Designation: TFMRX 652-22R-10
Tool sty S1 DCX  DC CICT DCONMS DHUB OAL APMX Arbor  RMPX HAND KAPR PD Insert Mtg. Ref ClssID MIID  RE CCTMS CCFMS LTA GICATGIREMgiic
FACE MILL ~10.00~52.0042.00622.0040.0040.005.00A 0.246.00~ ~3.0~RC ~CM-RX10 ~SH M10X1.5X30 ~71E01A05B627B ~RXMX 1003-M O 5.00~FDA ~02 ~40.00~3105141 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3105141 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3105141&cat=3105141&itemDesc=TFMRX 652-22R-10"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3105141', 'TFMRX 652-22R-10' , 'DXF' , '3105141 - TFMRX 652-22R-10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3105141&itemDesc=TFMRX 652-22R-10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
3D Representation

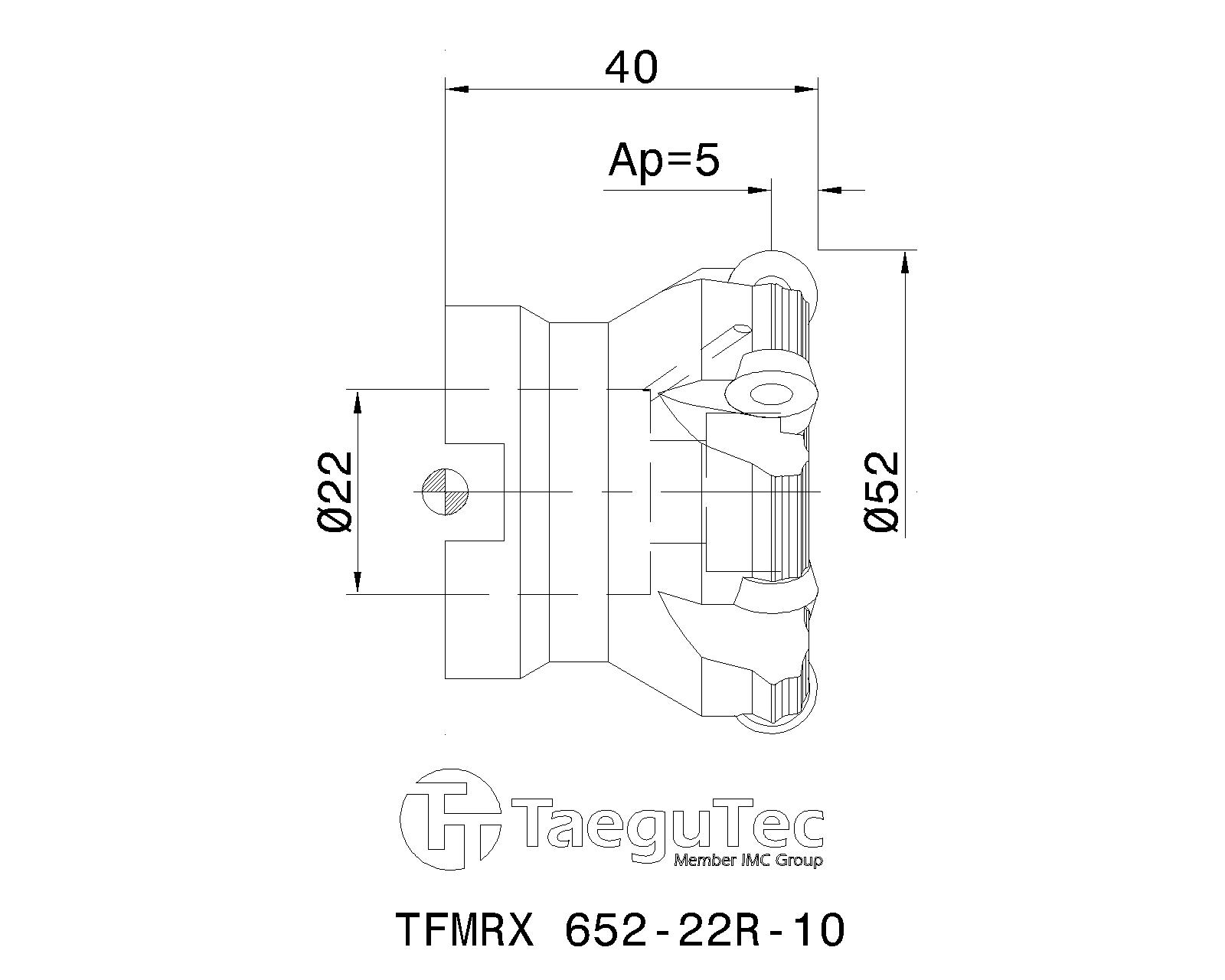

2D Representation
  Spare Parts
4351683TS 35070I/HG(M3.5X7MM)Screw
4351040SH M10X1.5X30Mounting bolt
4351469T-T15(A=80MM)COLORT-T wrench
