Family Designation: 3P TE90-15 90° End mills with high positive three helical cutting edges inserts of 3PK(H)T 15


Item Designation: 3P TE90-340-32-15-L200
Tool sty S1 DC CICT DCONMS OAL LU APMX  Fig. Shank Rd e K R/L Arbor  PD Insert CCTMS CCFMS S3 ClssID MIID LTA GICATGIREMgiic
ENDMILL ~15.00~40.00332.00200.0040.011.00X 21.24C 2.00~ ~90.0~ ~ ~C ~MR-3P15 ~ZYL ~01 ~2 ~71E01A05D27A8 ~3PKT 150508R-M 140.00~3110639 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3110639 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3110639&cat=3110639&itemDesc=3P TE90-340-32-15-L200"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3110639', '3P TE90-340-32-15-L200' , 'DXF' , '3110639 - 3P TE90-340-32-15-L200');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3110639&itemDesc=3P TE90-340-32-15-L200"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

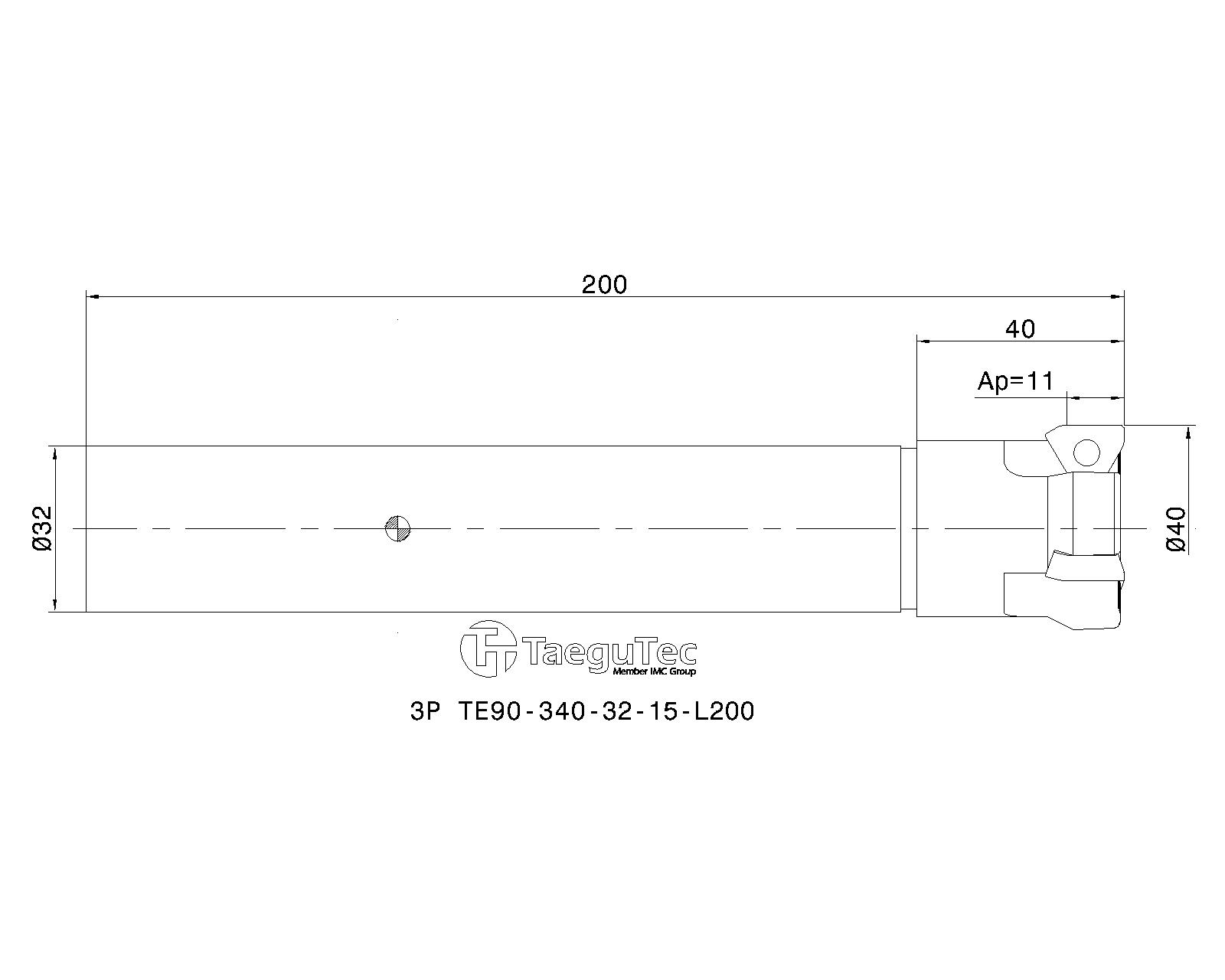

2D Representation
  Spare Parts
4352055TS 40B100IScrew
4350869TD 15 (T-15/51)TD wrench
