Family Designation: TFM90AP-R-12 90° Face mills with high positive two helical cutting edges inserts of APKT 12


 COOLANT
Item Designation: TFM90AP 550-22R-12
Tool sty DC CICT DCONMS DHUB OAL APMX  Arbor  S1 RMPX KAPR HAND PD Insert Mtg. Ref DCX  D Inner Pocket L1 FF/RN ClssID MIID CCTMS CCFMS LTA GICATGIREMgiic
FACE MILL ~50.00522.0045.0040.0012.00O ~A 0.3012.00~2.50~90.0~ ~C ~CM-AP12 ~SH M10X1.5X30 ~50.00~40.47~APKT 1204R-HF ~0.00~ ~71E01A05B627B ~APKT 1204 PER-EM FDA ~02 ~40.00~3111577 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3111577 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3111577&cat=3111577&itemDesc=TFM90AP 550-22R-12"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3111577', 'TFM90AP 550-22R-12' , 'DXF' , '3111577 - TFM90AP 550-22R-12');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3111577&itemDesc=TFM90AP 550-22R-12"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
Mounting bolt with coolant through hole is available on request (ordering example: SH M10x1.5x30-C)
3D Representation

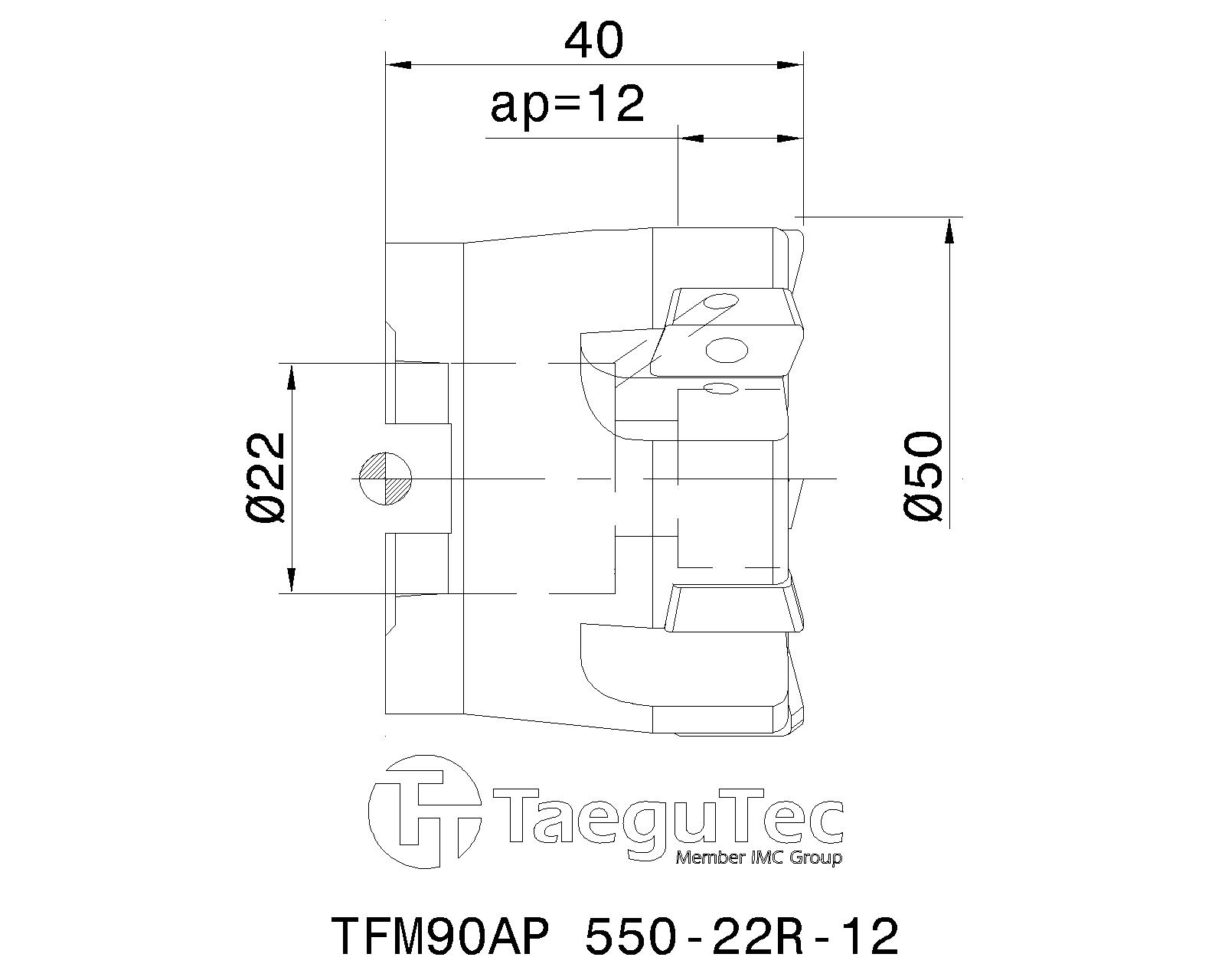

2D Representation
  Spare Parts
4352126TS 35A088I/HGScrew
4351040SH M10X1.5X30Mounting bolt
4352066TD 10P(362IP 26099)TD wrench
