Family Designation: TNF End mill holders with cylindrical steel shank & NFB or NFR inserts for finishing operations


 COOLANT
Item Designation: TNF 160-16L
Tool sty DCX  RE DCONMS OAL LH LU BHTA Fig. S2 S3 Shank KAPR HAND Arbor  PD Insert ClssID MIID  AE CCTMS CCFMS LTA GICATGIREMgiic
ENDMILL ~16.008.0016.00200.00100.00-116 ~13 ~C ~0.282.0~ ~ ~ ~FB-16 ~71E01A05D27A8 ~NFB 160-SM O ~0.0~ZYL ~01 ~152.00~3112563 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3112563 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3112563&cat=3112563&itemDesc=TNF 160-16L"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3112563', 'TNF 160-16L' , 'DXF' , '3112563 - TNF 160-16L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3112563&itemDesc=TNF 160-16L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

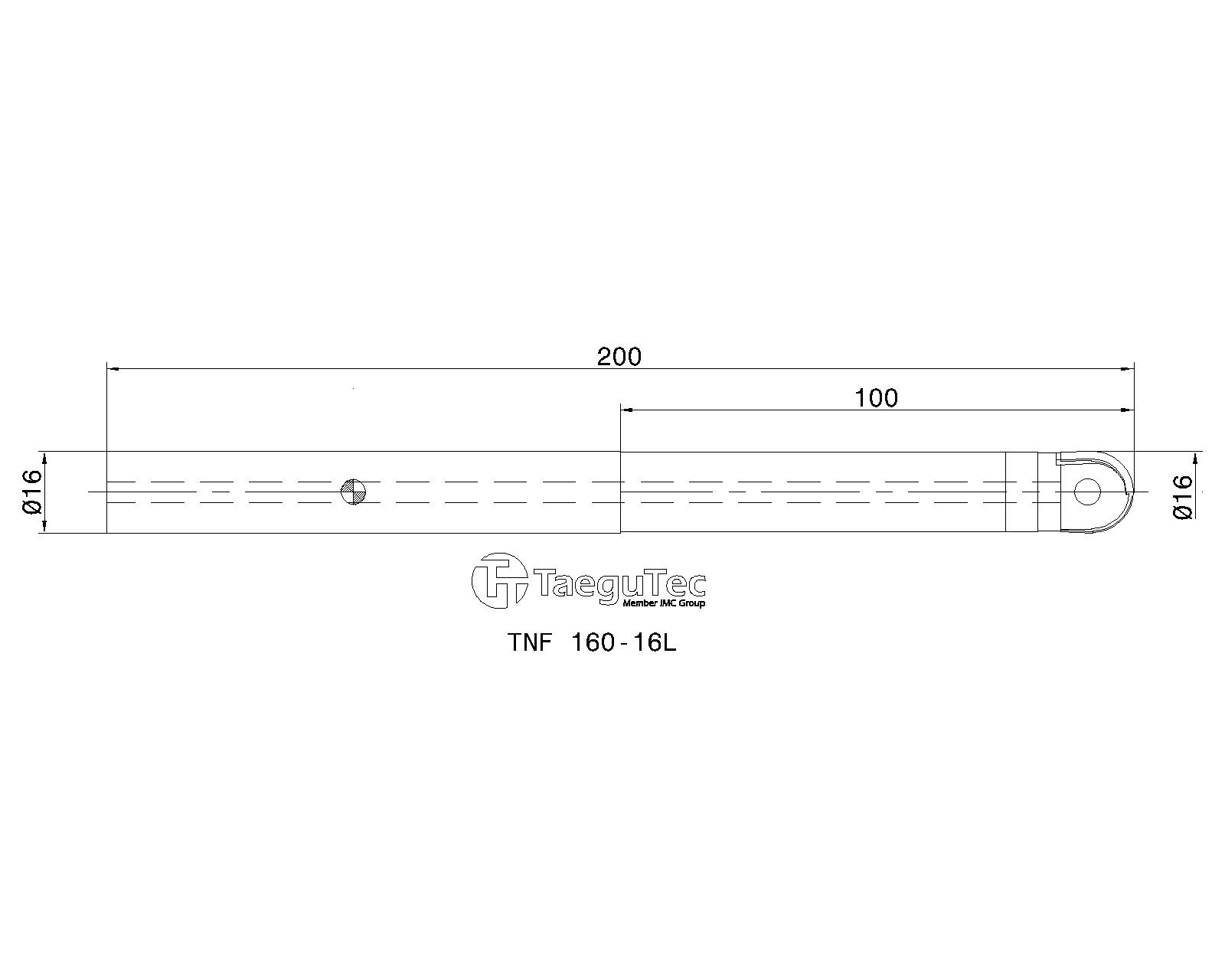

2D Representation
  Spare Parts
4353729TS 50F160AScrew
4351484T-T20T-T wrench
