TaeguTec Cutting Tools - Metal Working Tools - TCD-5XD (CYLINDRICAL) : 3204300 - TCD 105-109-16S0-5D
× Login Information

Family Designation: TCD-5XD (CYLINDRICAL) DRILLRUSH Head changeable drills with cylindrical shank (5xD) and coolant holes
Drilling depth: 5xdiameter

Drilling depth: 5xdiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: TCD 105-109-16S0-5D

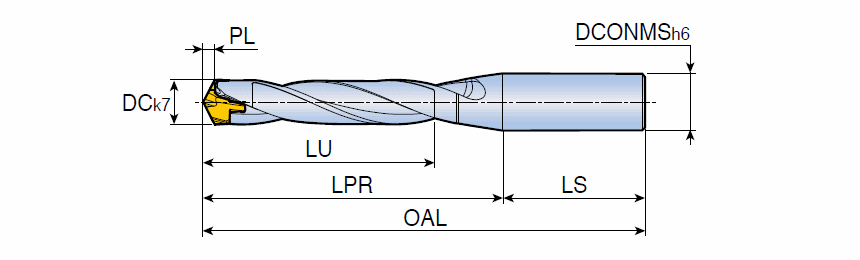

Tool sty DCN  DCX  DCONMS LU L1 LPR LS OAL SSC  PL  Machines Zeff Min Tol Max Tol Shank ClssID MIID CICT DC L/D CCFMS CCTMS LTA GICATGIREMgiic
HEAD TYPE ~10.5010.9016.0055.053.0~68.748.0116.7010 1.59Y ~ ~2~0~0~C ~71E01A0608FE4 ~TCD-105-P 1~10.50~5.00~01 ~ZYL ~67.11~3204300 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3204300 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3204300&cat=3204300&itemDesc=TCD 105-109-16S0-5D"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3204300', 'TCD 105-109-16S0-5D' , 'DXF' , '3204300 - TCD 105-109-16S0-5D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3204300&itemDesc=TCD 105-109-16S0-5D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

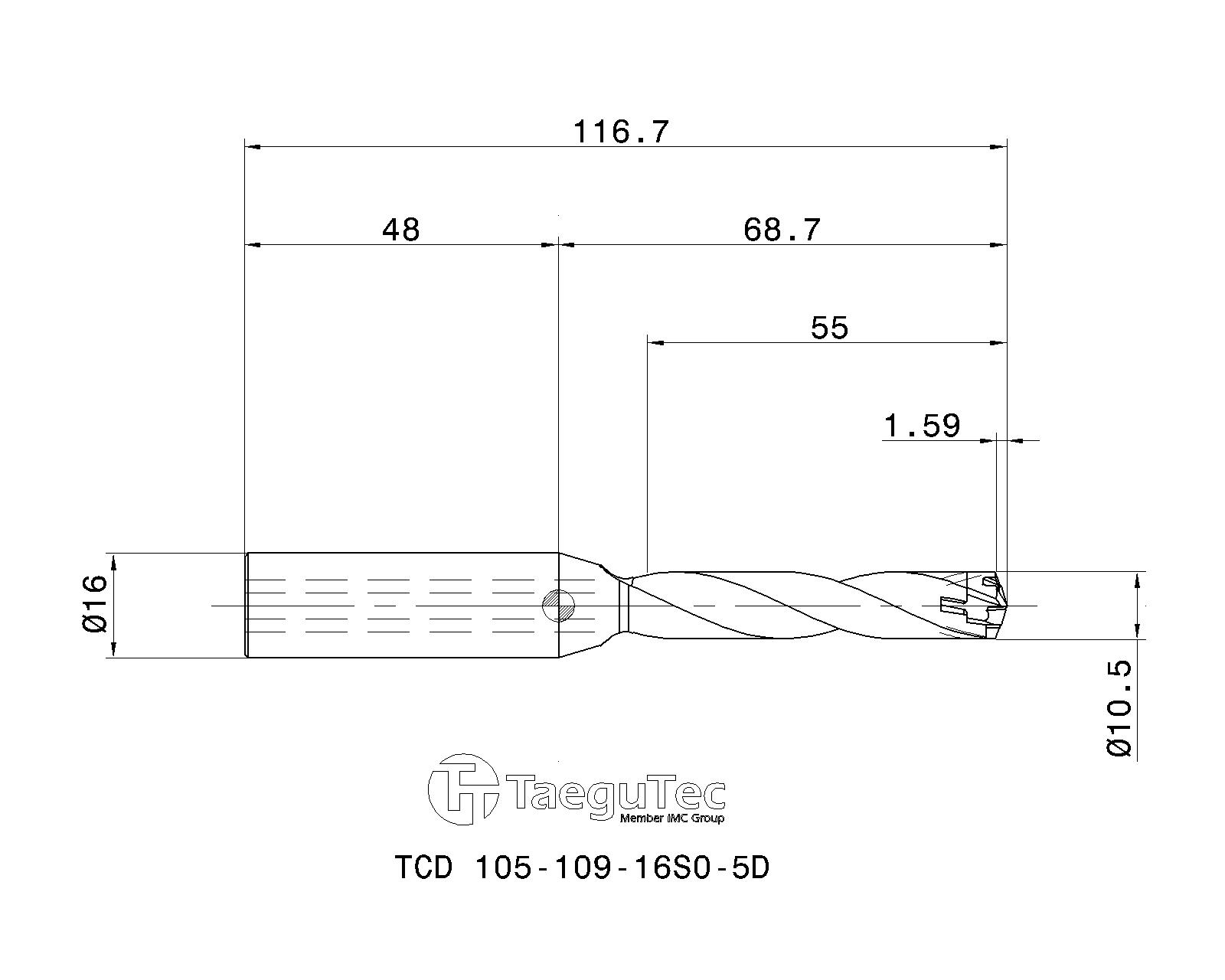

2D Representation
  Spare Parts
4354343K TCD D100-D199Clamping key
