TaeguTec Cutting Tools - Metal Working Tools - TCD-3XD (CYLINDRICAL) : 3204320 - TCD 140-144-16S0-3D
× Login Information

Family Designation: TCD-3XD (CYLINDRICAL) DRILLRUSH Head changeable drills with cylindrical shank (3xD) and coolant holes
Drilling depth: 3xdiameter

Drilling depth: 3xdiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: TCD 140-144-16S0-3D
Tool sty DCN  DCX  DCONMS LU L1 LPR LS OAL SSC  PL  Machines Zeff Min Tol Max Tol Shank ClssID MIID CICT DC L/D CCFMS CCTMS LTA GICATGIREMgiic
HEAD TYPE ~14.0014.4016.0044.042.0~62.148.0110.1014 2.12Y ~ ~2~0~0~C ~71E01A0608FE4 ~TCD-140-P 1~14.00~3.00~01 ~ZYL ~59.98~3204320 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3204320 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3204320&cat=3204320&itemDesc=TCD 140-144-16S0-3D"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3204320', 'TCD 140-144-16S0-3D' , 'DXF' , '3204320 - TCD 140-144-16S0-3D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3204320&itemDesc=TCD 140-144-16S0-3D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

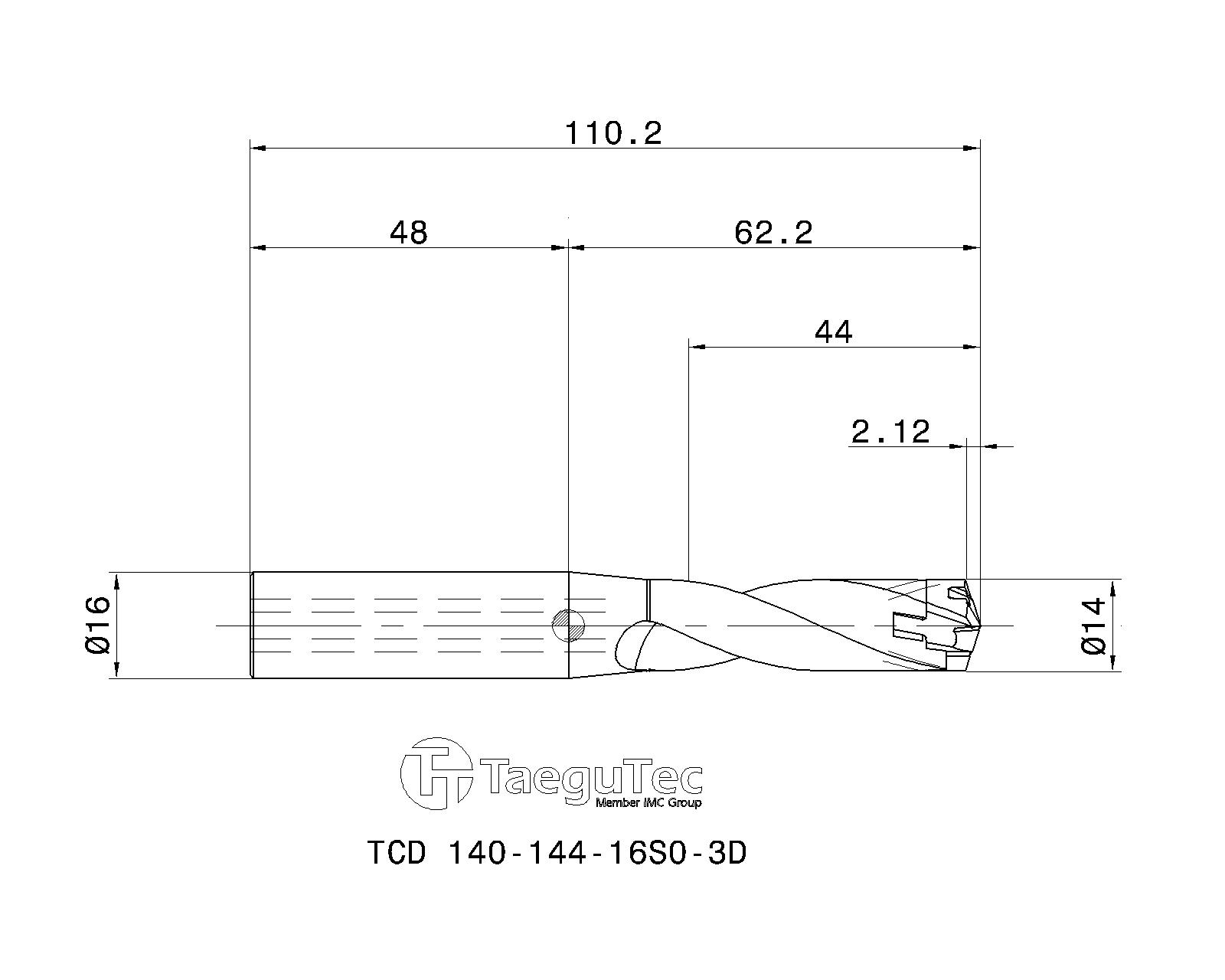

2D Representation
  Spare Parts
4354343K TCD D100-D199Clamping key
