Family Designation: TCD-1.5XD (CYLINDRICAL SHANK) Head changeable drills with cylindrical shank (1.5xD) and coolant holes
Drilling depth: 1.5xdiameter

Drilling depth: 1.5xdiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO

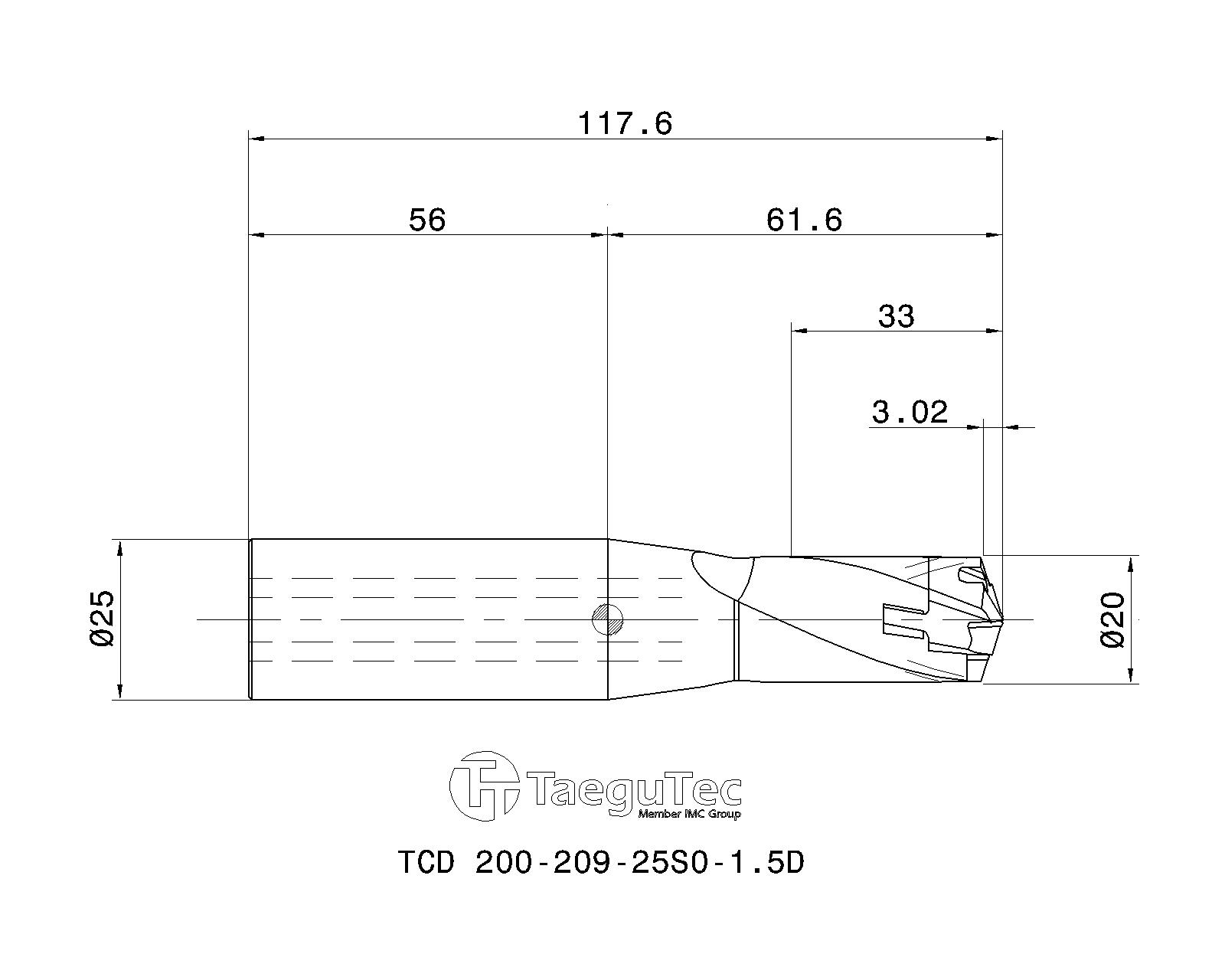

Item Designation: TCD 200-209-25S0-1.5D
Tool sty DCN  DCX  DCONMS LU L1 LPR LS OAL SSC  PL  Machines Zeff Min Tol Max Tol Shank ClssID MIID CICT DC L/D CCFMS CCTMS LTA GICATGIREMgiic
HEAD TYPE ~20.0020.9025.0033.030.0~61.656.0117.6020.00 3.02Y ~ ~2~0~0~C ~71E01A0608FE4 ~TCD-200-P 1~20.00~1.50~01 ~ZYL ~58.58~3204490 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3204490 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3204490&cat=3204490&itemDesc=TCD 200-209-25S0-1.5D"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3204490', 'TCD 200-209-25S0-1.5D' , 'DXF' , '3204490 - TCD 200-209-25S0-1.5D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3204490&itemDesc=TCD 200-209-25S0-1.5D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation
2D Representation
  Spare Parts
4355018K TCD D200-D269Clamping key
