Family Designation: TCD-3XD (CYLINDRICAL) DRILLRUSH Head changeable drills with cylindrical shank (3xD) and coolant holes
Drilling depth: 3xdiameter

Drilling depth: 3xdiameter

 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: TCD 240-249-32S0-3D

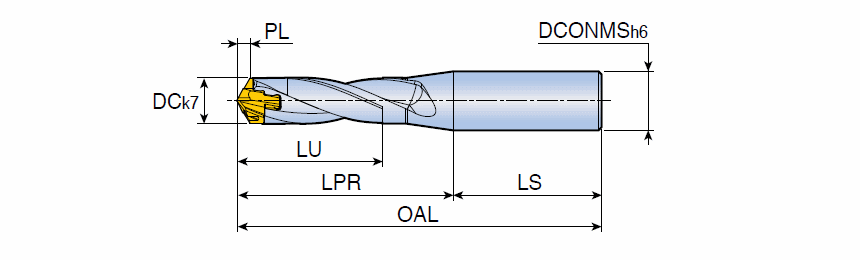

Tool sty DCN  DCX  DCONMS LU L1 LPR LS OAL SSC  PL  Machines Zeff Min Tol Max Tol Shank ClssID MIID CICT DC L/D CCFMS CCTMS LTA GICATGIREMgiic
HEAD TYPE ~24.0024.9032.0076.072.0~109.960.0169.9024 3.62Y ~ ~2~0~0~C ~71E01A0608FE4 ~TCD-240-P 1~24.00~3.00~01 ~ZYL ~106.28~3204750 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3204750 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3204750&cat=3204750&itemDesc=TCD 240-249-32S0-3D"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3204750', 'TCD 240-249-32S0-3D' , 'DXF' , '3204750 - TCD 240-249-32S0-3D');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3204750&itemDesc=TCD 240-249-32S0-3D"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

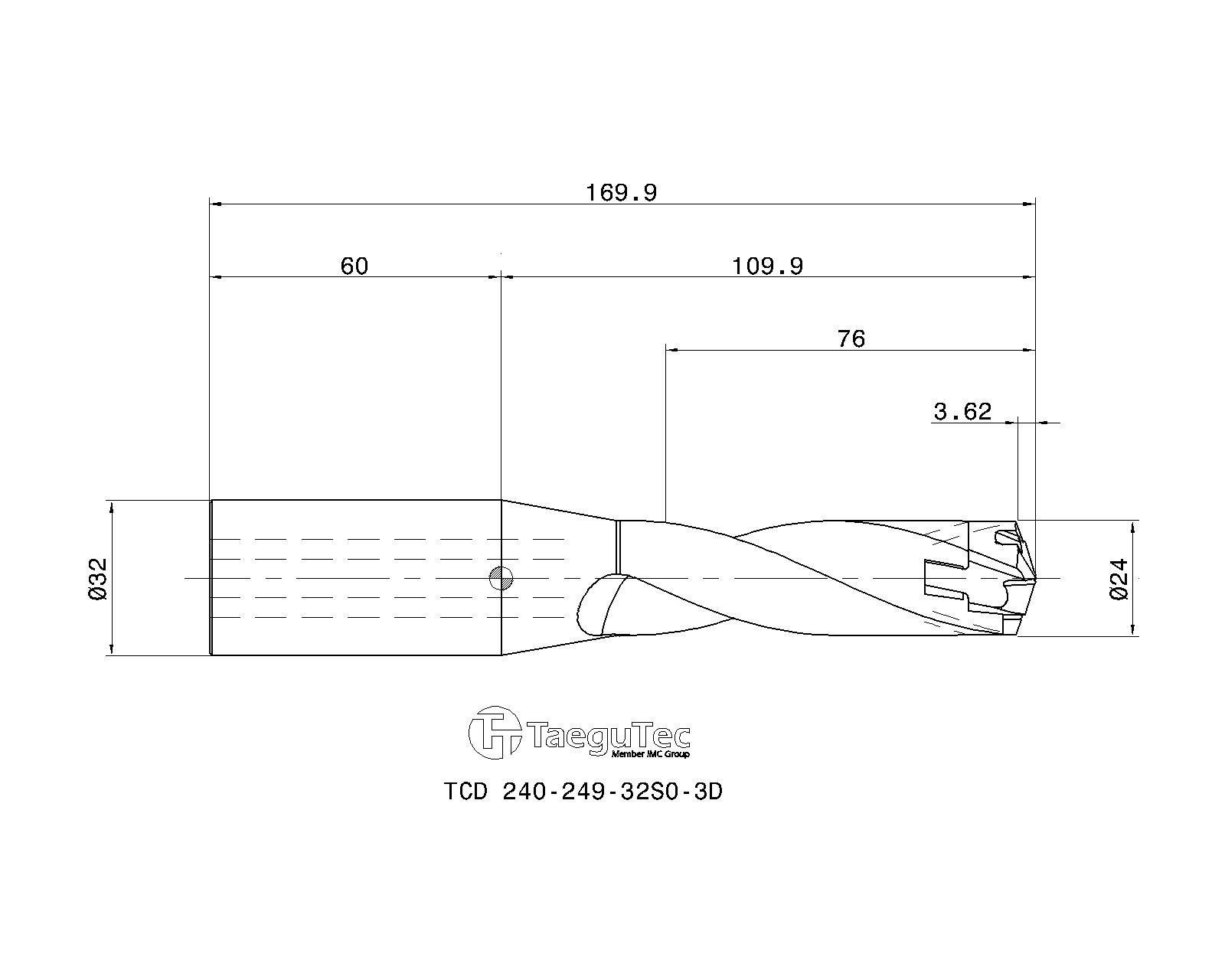

2D Representation
  Spare Parts
4355018K TCD D200-D269Clamping key
