Family Designation: AES 2 2 Flute solid carbide end mills of medium length type for aluminum machining


 EM FLUTES_2  EM HELIX ANGLE_45

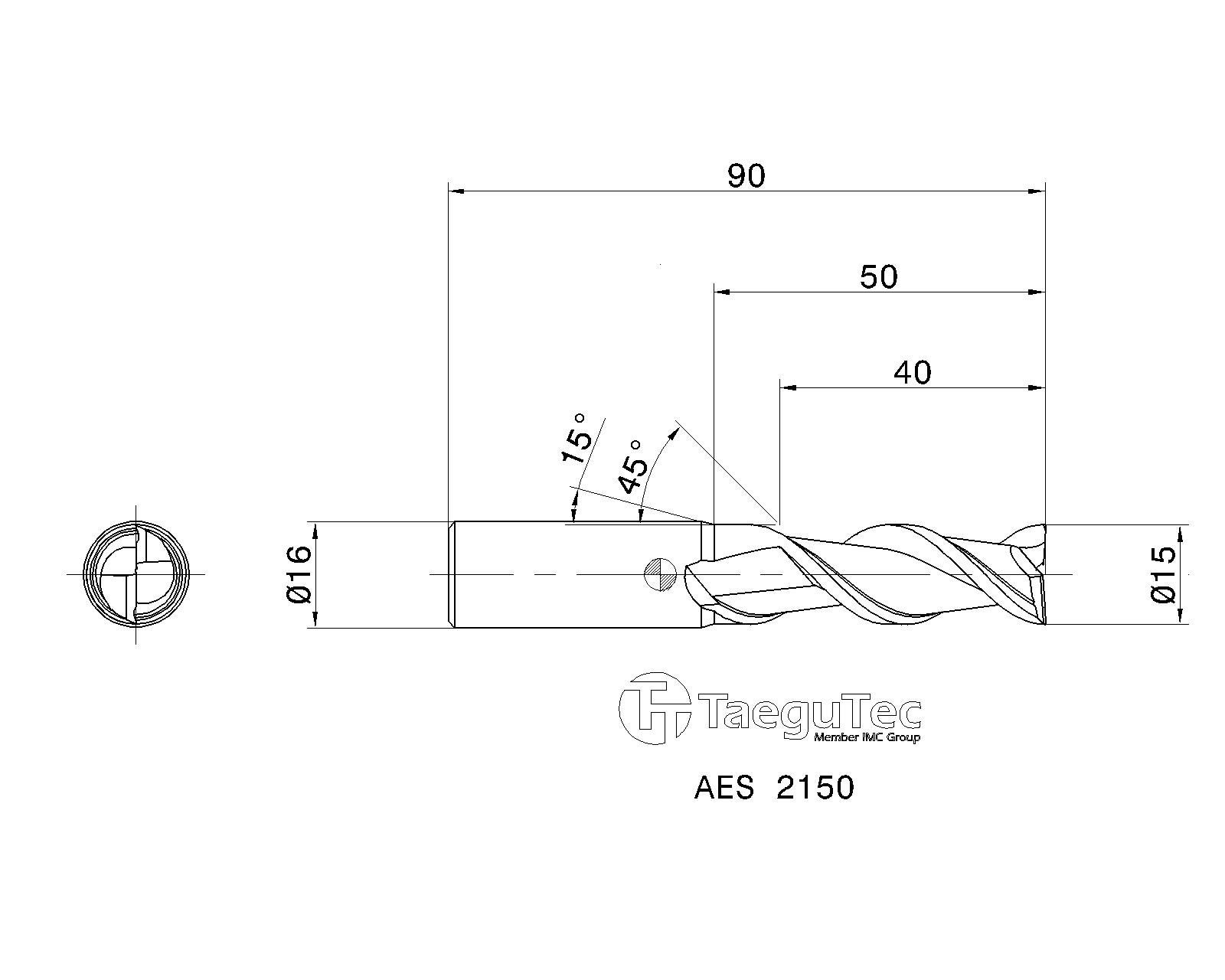

Item Designation: AES 2150
Tool sty DC DCONMS APMX LU OAL Type FHA Shank RMPX fz
(min) 		fz
(max) 		NOF  ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~15.0016.0040.0050.0090.00 B ~45.0~C ~5.00~0.0500.1402~71E01A05D27A8 ~ZYL ~01 ~52.87~4103069 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4103069 UF103<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4103069&cat=4103069&itemDesc=AES 2150"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4103069', 'AES 2150' , 'DXF' , '4103069 - AES 2150');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4103069&itemDesc=AES 2150"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation
2D Representation
