Family Designation: CEM (Brazed type) 2 flute carbide brazed end mills with steel shank for 45° chamfering, countersinking & spot drilling


 EM FLUTES_2  EM HELIX ANGLE_30
Item Designation: CEM 1016

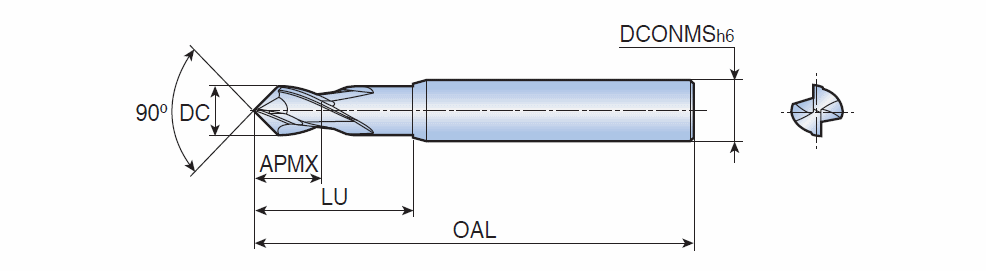

Tool sty DC OAL APMX LU DCONMS FHA Shank RMPX fz
(min) 		fz
(max) 		NOF  ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~10.00115.0015.0026.016.0030.0~C ~0.00~0.0300.1002~71E01A05D27A8 ~ZYL ~01 ~67.00~4103132 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4103132 UF103<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4103132&cat=4103132&itemDesc=CEM 1016"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4103132', 'CEM 1016' , 'DXF' , '4103132 - CEM 1016');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4103132&itemDesc=CEM 1016"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1

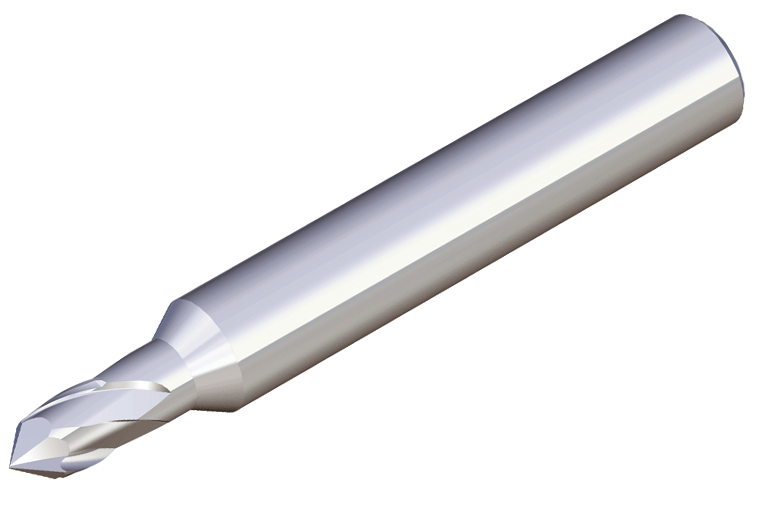

3D Representation

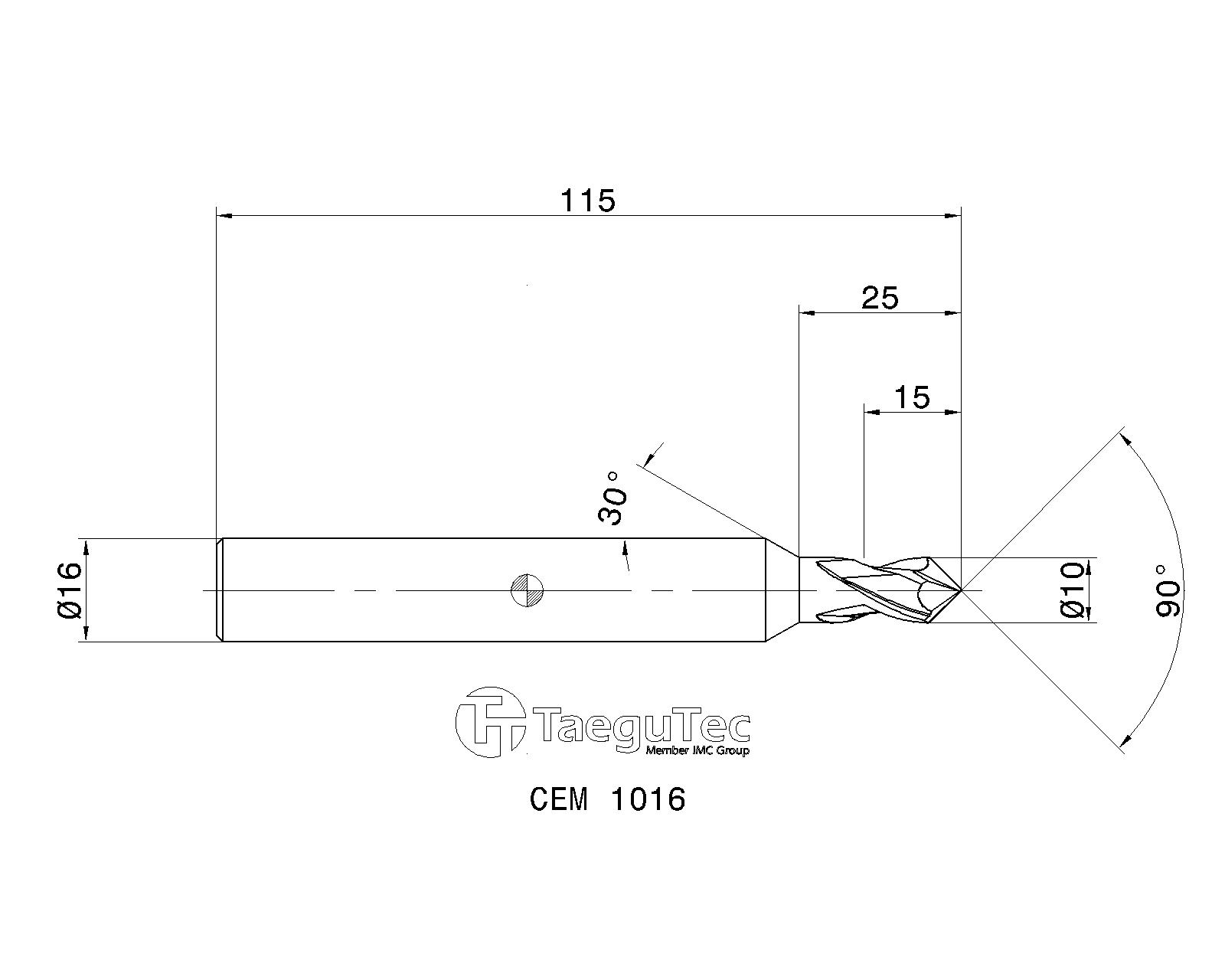

2D Representation
