Family Designation: AES 3..XL 3 Flute solid carbide end mills of extra long length type for aluminum machining


 EM FLUTES_3  EM HELIX ANGLE_45
Item Designation: AES 3160XL
Tool sty DC DCONMS APMX LU OAL Type FHA Shank RMPX fz
(min) 		fz
(max) 		NOF  ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~16.0016.0070.00-125.00 A ~45.0~C ~5.00~0.0500.1403~71E01A05D27A8 ~ZYL ~01 ~80.30~4104307 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4104307 UF101<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4104307&cat=4104307&itemDesc=AES 3160XL"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4104307', 'AES 3160XL' , 'DXF' , '4104307 - AES 3160XL');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4104307&itemDesc=AES 3160XL"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

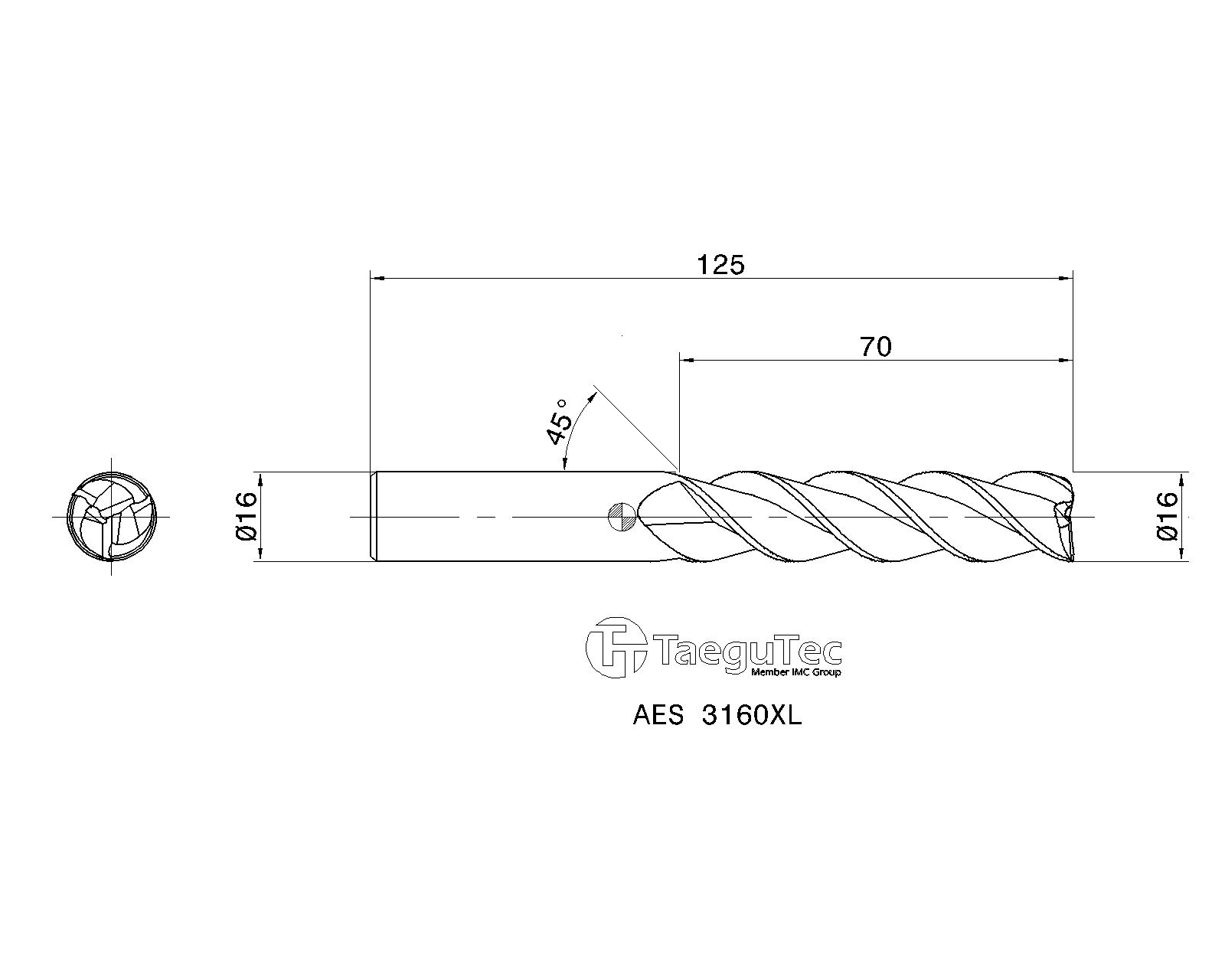

2D Representation
