TaeguTec Cutting Tools - Metal Working Tools - SBE 2___L : 4106132 - SBE 2030L
× Login Information

Family Designation: SBE 2___L Solid carbide ball nose end mills with 2 flute & long type for general application


Item Designation: SBE 2030L
Tool sty DC RE OAL APMX LU DN DCONMS FHA Shank RMPX NOF  ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~3.001.50100.004.0035.02.856.0030.0~C ~0.00~2~71E01A05D27A8 ~ZYL ~01 ~64.00~4106132 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4106132 UF10N3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4106132&cat=4106132&itemDesc=SBE 2030L"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4106132', 'SBE 2030L' , 'DXF' , '4106132 - SBE 2030L');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4106132&itemDesc=SBE 2030L"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

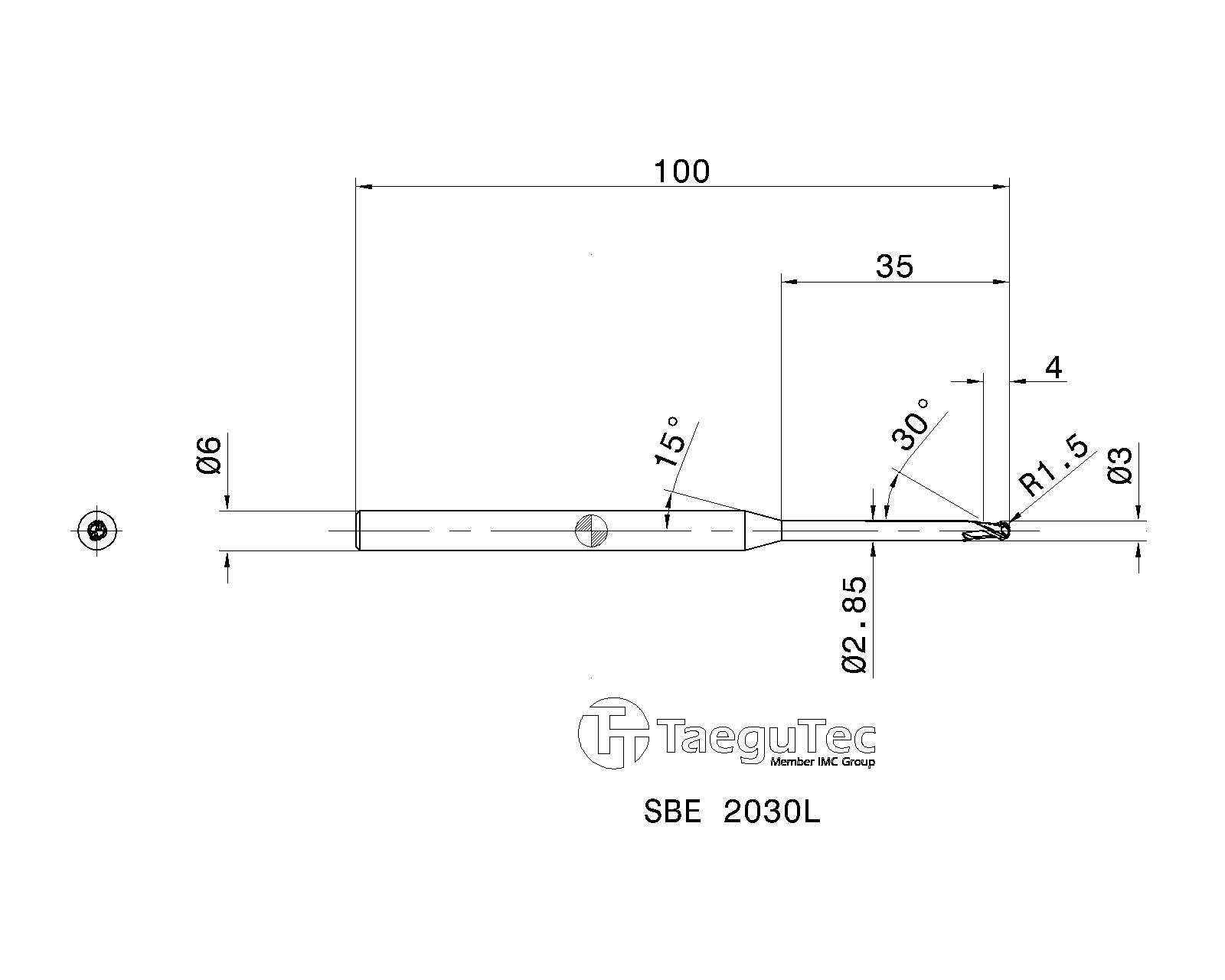

2D Representation
