Home Page > Milling & Solid End mills > Countersinking > ECEM 4 (4 flutes) > ECEM 4100

Milling & Solid End mills
Main Application

Countersinking
Sub Application

Related Holder
Machine Side

Family Designation: ECEM 4 (4 flutes)

Economical type 4 flute solid carbide end mills for 45° chamfering & countersinking

EM FLUTES_4

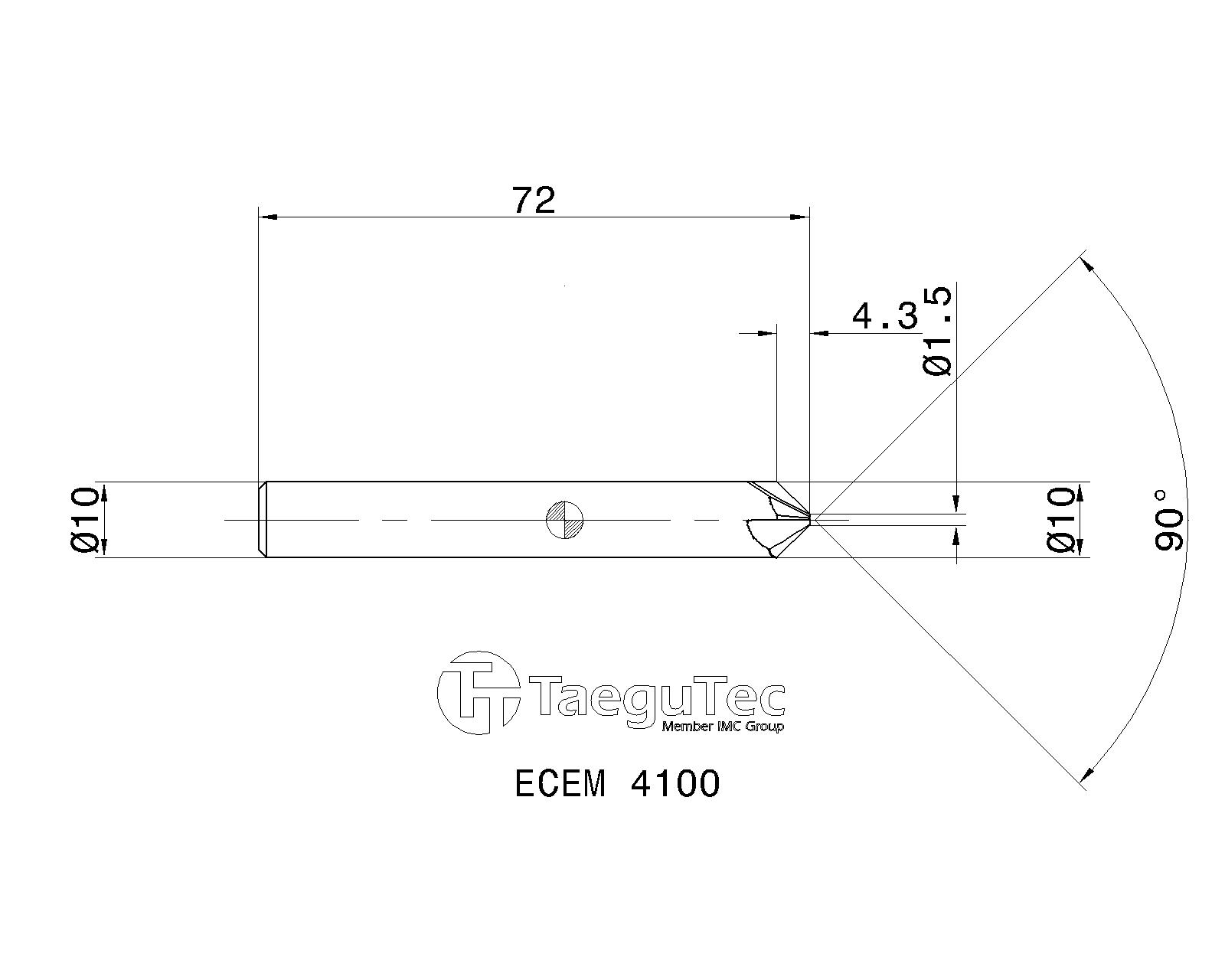

Item Designation: ECEM 4100

Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	10.00	72.00	4.40	10.00	0.0~	C ~	0.00~	0.030	0.080	4~	71E01A05D27A8 ~	ZYL ~	01 ~	32.00~	6263529		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
4107397	UF10			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4107397&cat=4107397&itemDesc=ECEM 4100"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('4107397', 'ECEM 4100' , 'DXF' , '4107397 - ECEM 4100');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=4107397&itemDesc=ECEM 4100"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6263529	TT5525			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6263529&cat=6263529&itemDesc=ECEM 4100"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6263529', 'ECEM 4100' , 'DXF' , '6263529 - ECEM 4100');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6263529&itemDesc=ECEM 4100"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
