Home Page > Milling & Solid End mills > Countersinking > ECEM 4 (4 flutes) > ECEM 4120

Milling & Solid End mills
Main Application

Countersinking
Sub Application

Related Holder
Machine Side

Family Designation: ECEM 4 (4 flutes)

Economical type 4 flute solid carbide end mills for 45° chamfering & countersinking

EM FLUTES_4

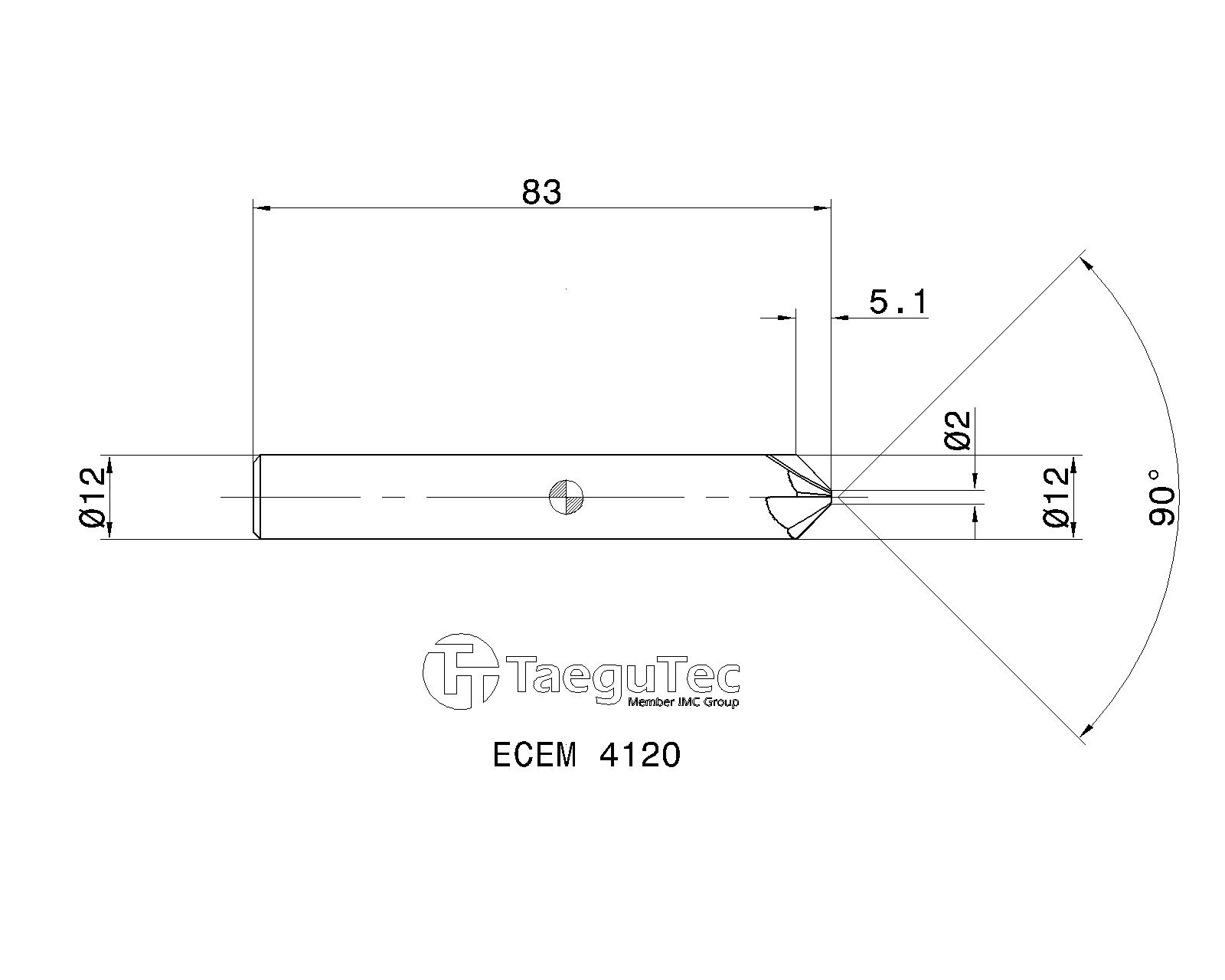

Item Designation: ECEM 4120

Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	12.00	83.00	5.10	12.00	0.0~	C ~	0.00~	0.030	0.080	4~	71E01A05D27A8 ~	ZYL ~	01 ~	38.00~	6217435		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
4107398	UF10			1	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4107398&cat=4107398&itemDesc=ECEM 4120"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('4107398', 'ECEM 4120' , 'DXF' , '4107398 - ECEM 4120');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=4107398&itemDesc=ECEM 4120"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6217435	TT5525			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6217435&cat=6217435&itemDesc=ECEM 4120"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	Not Available<br /><a href="javascript:openDxfRequest('2D','6217435', 'ECEM 4120' , 'M');">2D Required</a>			<a href="FilesDownload.aspx?FileType=P&cat=6217435&itemDesc=ECEM 4120"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	Not Available 3D Required

2D Representation	ISO	Not Available 2D Required
