TaeguTec Cutting Tools - Metal Working Tools - AES 3..XL : 4107492 - AES 3200XL(80X150)
× Login Information

Family Designation: AES 3..XL 3 Flute solid carbide end mills of extra long length type for aluminum machining


 EM FLUTES_3  EM HELIX ANGLE_45
Item Designation: AES 3200XL(80X150)
Tool sty DC DCONMS APMX LU OAL Type FHA Shank RMPX fz
(min) 		fz
(max) 		NOF  ClssID CCTMS CCFMS LTA GICATGIREMgiic
SOLID TYPE ~20.0020.0080.00-150.00 A ~45.0~C ~5.00~0.0500.1503~71E01A05D27A8 ~ZYL ~01 ~100.00~4107492 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4107492 UF103<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4107492&cat=4107492&itemDesc=AES 3200XL(80X150)"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4107492', 'AES 3200XL(80X150)' , 'DXF' , '4107492 - AES 3200XL(80X150)');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4107492&itemDesc=AES 3200XL(80X150)"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

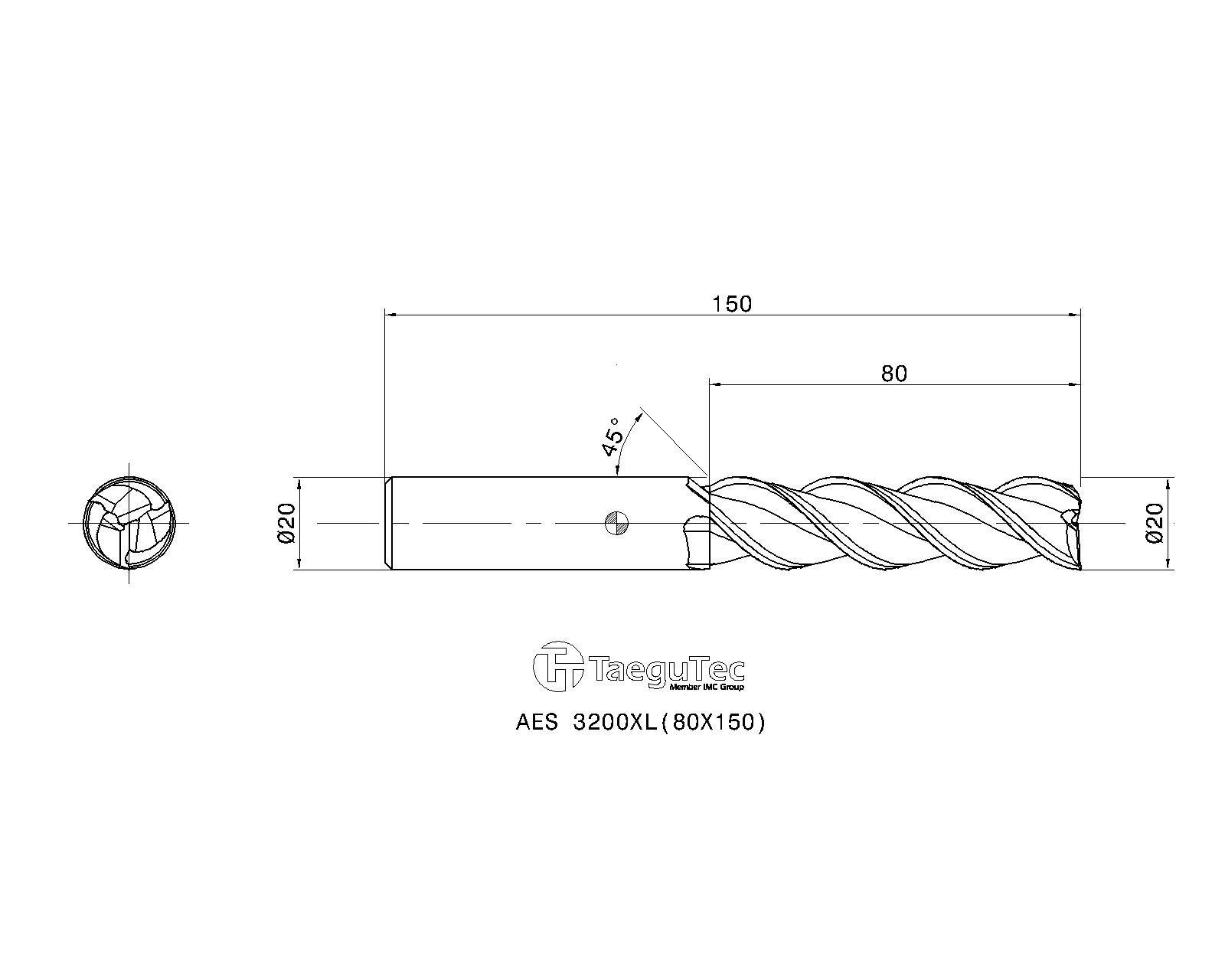

2D Representation
