TaeguTec Cutting Tools - Metal Working Tools - AWE 3 : 4108489

Solid carbide end mills for aluminum machining with waved cutting edges, unequal space of cutting edges & variable helix angles without vibration

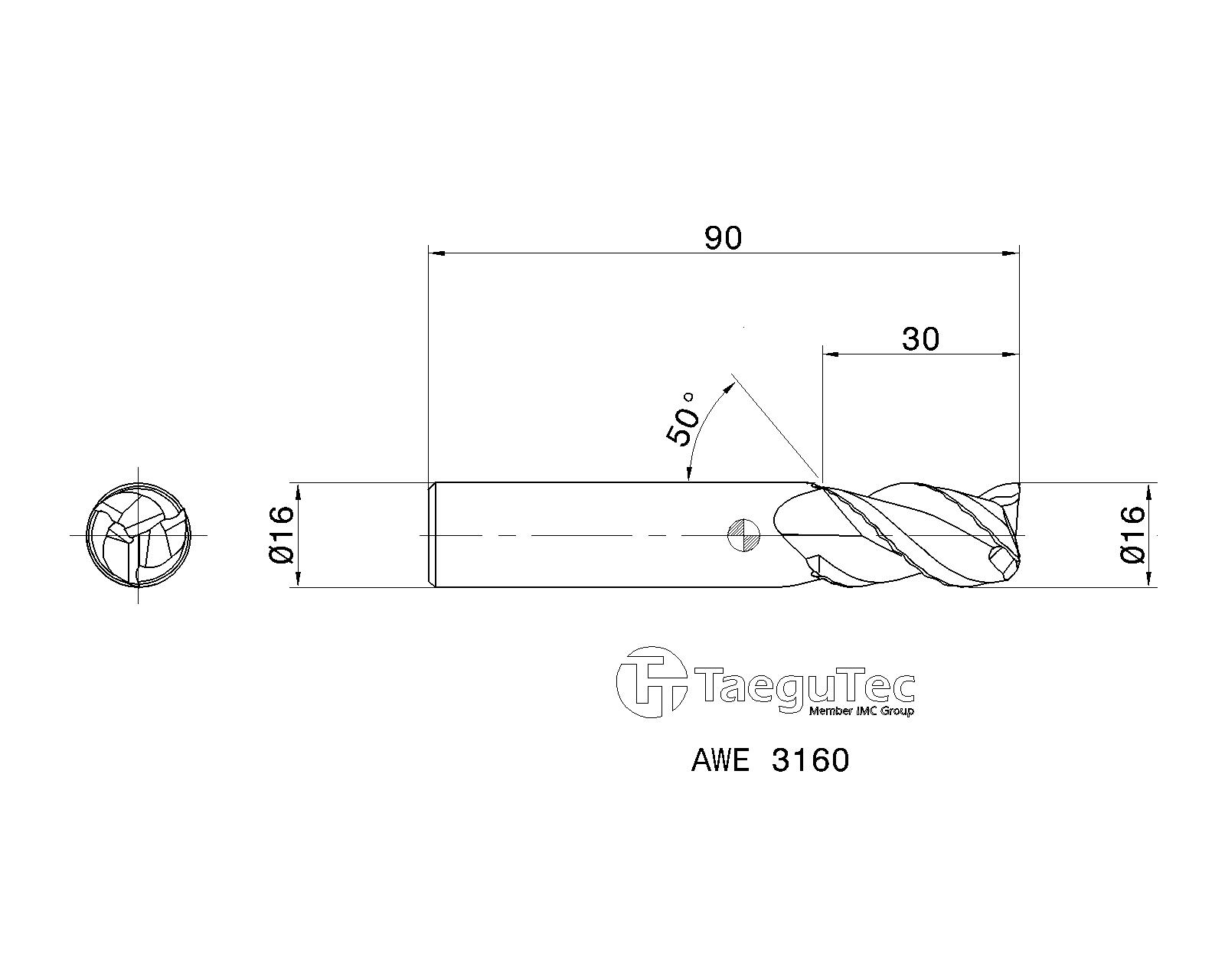

Item Designation: AWE 3160

Tool sty	DC	OAL	APMX	DCONMS	FHA	Shank	RMPX	fz (min)	fz (max)	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	16.00	90.00	30.00	16.00	50.0~	C ~	5.00~	0.050	0.140	3~	71E01A05D27A8 ~	ZYL ~	01 ~	42.00~	4108489		1

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
4108489	UF10			3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4108489&cat=4108489&itemDesc=AWE 3160"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('4108489', 'AWE 3160' , 'DXF' , '4108489 - AWE 3160');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=4108489&itemDesc=AWE 3160"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
