Family Designation: DMB 2

Solid carbide ball nose end mills of miniature type with 2 flute and diamond coating for graphite machining

EM FLUTES_2

EM HELIX ANGLE_30

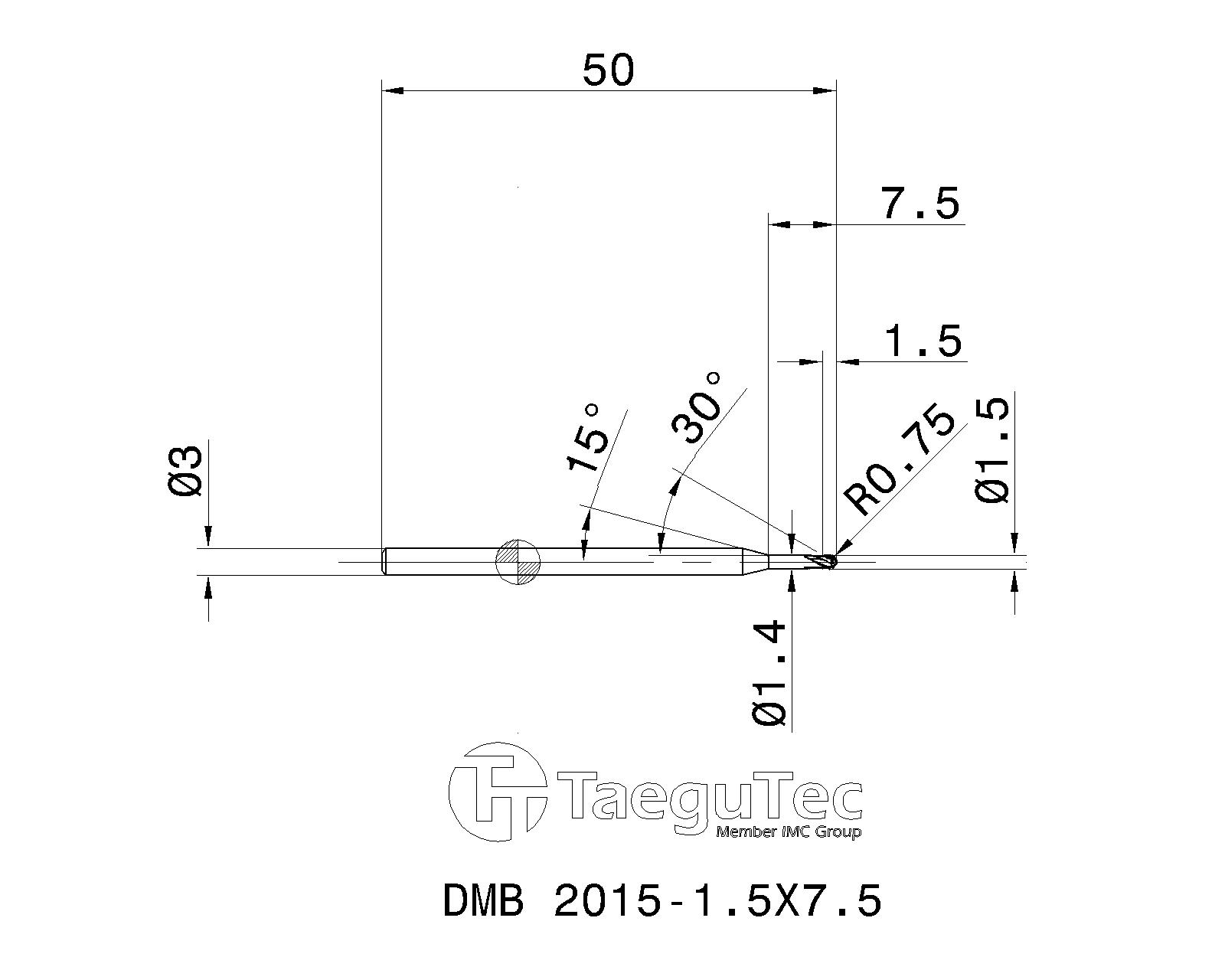

Item Designation: DMB 2015-1.5X7.5

Tool sty	DC	RE	OAL	APMX	LU	DN	DCONMS	FHA	Shank	RMPX	NOF	ClssID	CCTMS	CCFMS	LTA	GICAT	GIREM	giic
SOLID TYPE ~	1.50	0.75	50.00	1.50	7.5	1.40	3.00	30.0~	C ~	3.00~	2~	71E01A05D27A8 ~	ZYL ~	01 ~	35.00~	6243811		2

Catalog No	Grade & Vc	Alternative	Files Package	GISC	GTC	DXF	Add to favorites	Properties File	P21
4150673	TT6050	Alternative		3	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4150673&cat=4150673&itemDesc=DMB 2015-1.5X7.5"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('4150673', 'DMB 2015-1.5X7.5' , 'DXF' , '4150673 - DMB 2015-1.5X7.5');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=4150673&itemDesc=DMB 2015-1.5X7.5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
6243811	TTD620			6	<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=6243811&cat=6243811&itemDesc=DMB 2015-1.5X7.5"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a>	<a href="javascript:OpenDxf('6243811', 'DMB 2015-1.5X7.5' , 'DXF' , '6243811 - DMB 2015-1.5X7.5');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a>			<a href="FilesDownload.aspx?FileType=P&cat=6243811&itemDesc=DMB 2015-1.5X7.5"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>

Items Per Package : 1

3D Representation	Light Detailed	3D Required

2D Representation	ISO	2D Required
