Family Designation: SHO-M(PRE-THREAD) Solid carbide drills for pre-thread hole (M4-M10) with chamfering & coolant holes


 DR COOLANT-TCD/LCD/NHD(PI)/SHO
Item Designation: SHO 085X30X12-M10
Tool sty S1 Th DC OAL SDL LCF DCONMS PL Zeff  Machines Min Tol Max Tol Shank ClssID CCFMS CCTMS LTA GICATGIREMgiic
SOLID TYPE ~5.00~M10 8.50103.3030.0056.312.001.302~ Y ~ ~0~0~C ~71E01A067F73C ~01 ~ZYL ~55.00~4209666 1
Catalog NoGrade & VcAlternativeFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4209666 TT90303<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4209666&cat=4209666&itemDesc=SHO 085X30X12-M10"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4209666', 'SHO 085X30X12-M10' , 'DXF' , '4209666 - SHO 085X30X12-M10');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4209666&itemDesc=SHO 085X30X12-M10"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

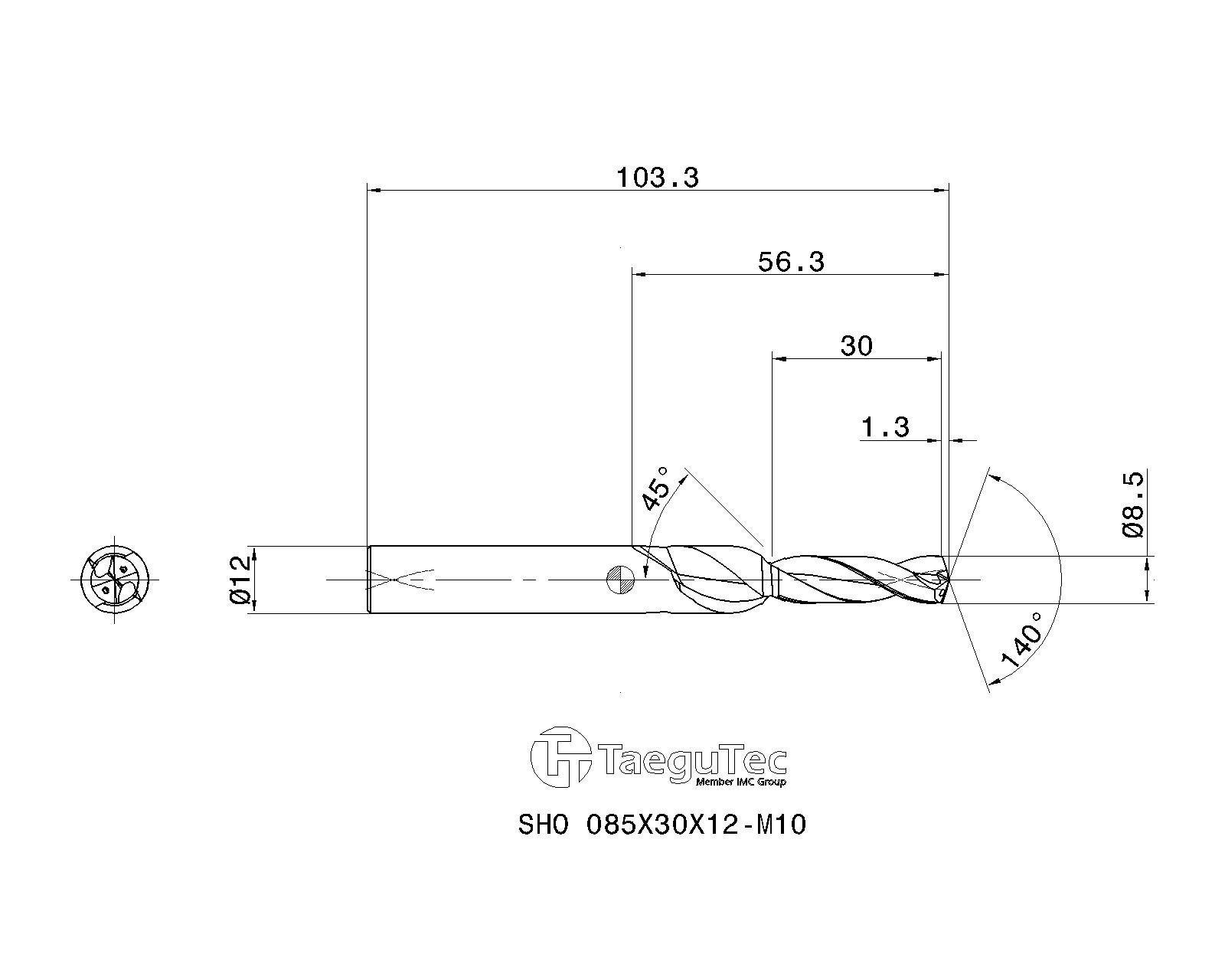

2D Representation
