TaeguTec Cutting Tools - Metal Working Tools - HSK A-ER : 4601353 - HSK A 100 ER 16X160
× Login Information
Family Designation: HSK A-ER DIN 6499 ER collet chucks with HSK DIN 69893 taper shanks


 IT_BALANCE_20000 RPM  IT_BALANCE GRADE  IT_RUN-OUT A0.003  IT_SURFACE HARDNESS 58~60HRC  IT_N5
Item Designation: HSK A 100 ER 16X160
S1 DCONMS CSI DCONNWS DCONXWS BD BD_2 LPR LBX LB THID d2 ClssID LTA CCTWS CCFWS GICATGIREMgiic
100.00~100 ER16 0.5010.0028.0040.00160.00131.085.00M10 2.710.00~71EAD3871D313 ~149.40~SZD ~02 ~4601353 Balance to G6.3 at 12,000RPM 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4601353 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4601353&cat=4601353&itemDesc=HSK A 100 ER 16X160"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4601353', 'HSK A 100 ER 16X160' , 'DXF' , '4601353 - HSK A 100 ER 16X160');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4601353&itemDesc=HSK A 100 ER 16X160"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Balance to G6.3 at 12,000RPM
Items Per Package : 1
3D Representation

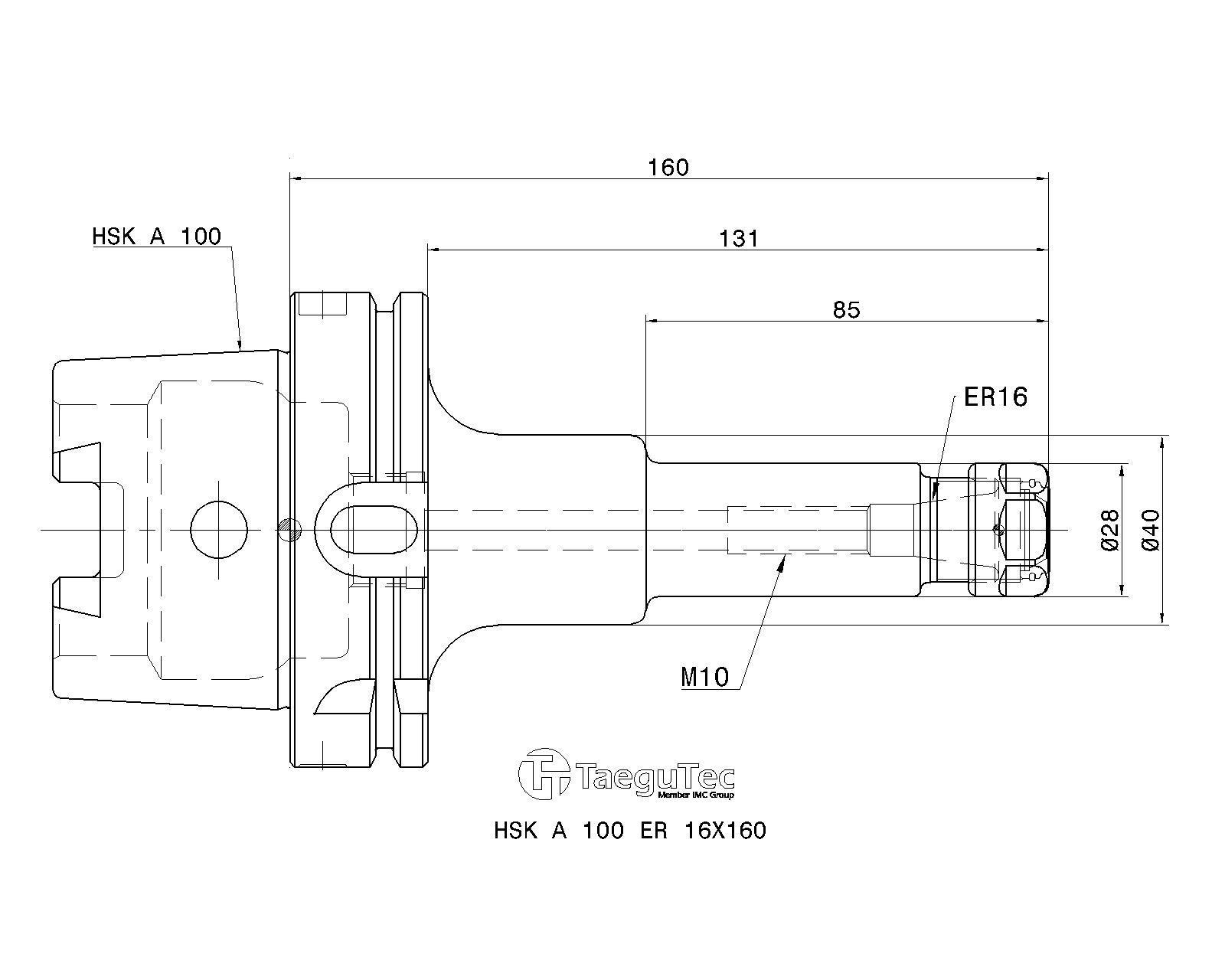

2D Representation
