Family Designation: ST-ER(F) DIN 6499 ER collet chucks with straight shanks


 IT_N5  IT_SURFACE HARDNESS 58~60HRC  IT_RUN-OUT A0.005
Item Designation: ST 20X100 ER32
CSI DCONMS DCONWS DCONXWS BD OHN LS THID DRVS Fig S1 d2 ClssID LTA CCTMS CCFMS CCTWS CCFWS GICATGIREMgiic
ER32 20.002.0020.0050.0054.00100.00M12 36.020.400.00~0.00~71EAD3871D313 ~91.00~ZYL ~01 ~SZD ~02 ~4601506 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
4601506 3<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=4601506&cat=4601506&itemDesc=ST 20X100 ER32"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4601506', 'ST 20X100 ER32' , 'DXF' , '4601506 - ST 20X100 ER32');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=4601506&itemDesc=ST 20X100 ER32"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
F: Flat on the shank
3D Representation

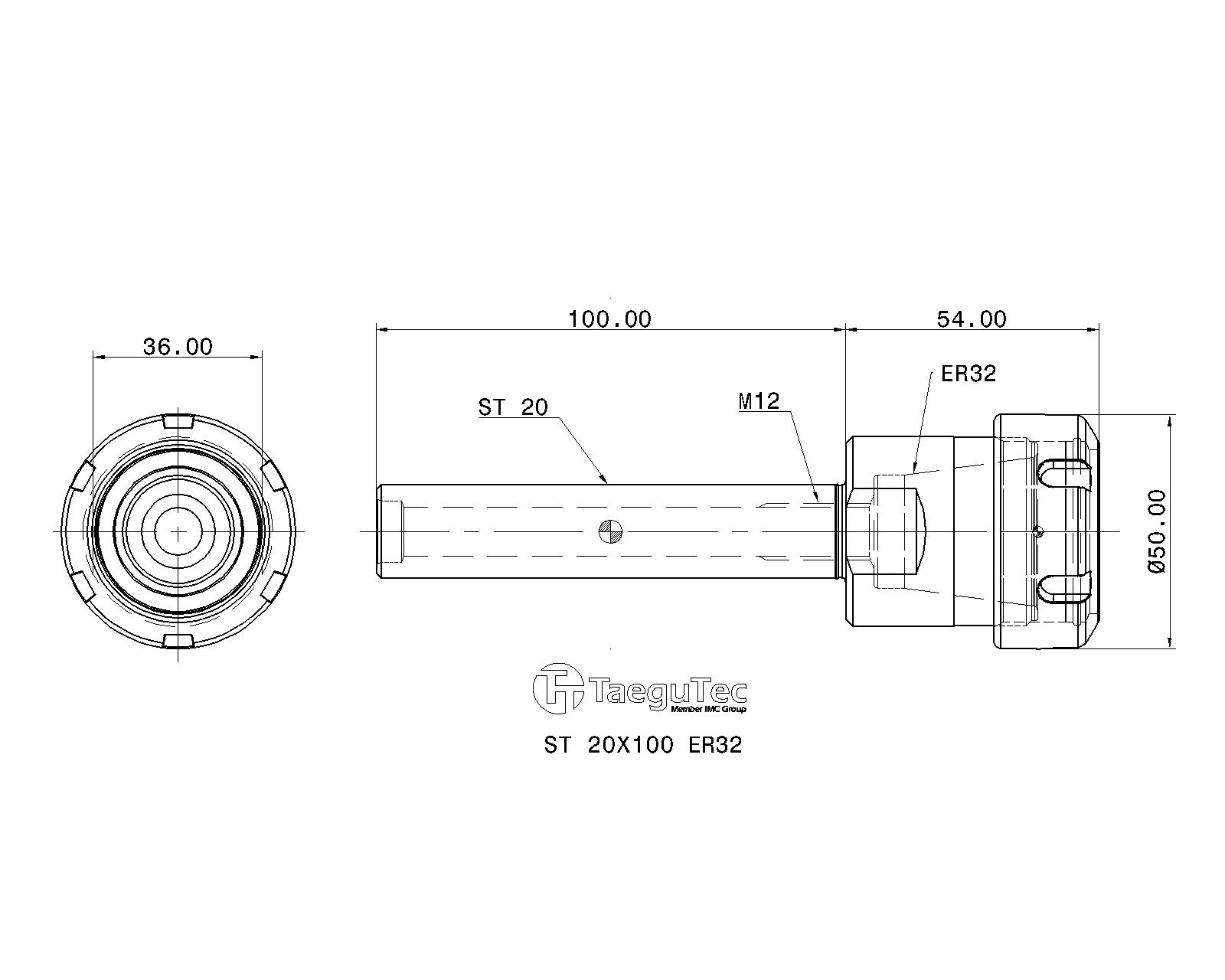

2D Representation
