TaeguTec Cutting Tools - Metal Working Tools - DIN2080-SEM : 4601715 - DIN2080 30 SEM 27X32
× Login Information
Family Designation: DIN2080-SEM DIN 3937 Face mill arbors with DIN 2080 taper shanks


 IT_N5  IT_SURFACE HARDNESS 58~60HRC  IT_RUN-OUT A0.005  IT_TAPER SHANK GRADE
Item Designation: DIN2080 30 SEM 27X32
SS DCONWS BD LF LB LSCWS CRKS d2 ClssID LTA CCTWS CCFWS GICATGIREMgiic
30 27.0058.0032.0022.421.00M12 0.760.00~ ~32.00~FDA ~02 ~4601715 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesSTPL
4601715 ** 9<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=0&cat=4601715&itemDesc=DIN2080 30 SEM 27X32"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('4601715', 'DIN2080 30 SEM 27X32' , 'DXF' , '4601715 - DIN2080 30 SEM 27X32');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=S&sFolder=STPL&cat=4601715&itemDesc=DIN2080 30 SEM 27X32"><img src="./media/icons/icon_stp.svg" title="STPL" width="27px" border="0"></a>
Items Per Package : 1
(**) Requires a price and delivery time quotation
 Wrench not included
3D Representation

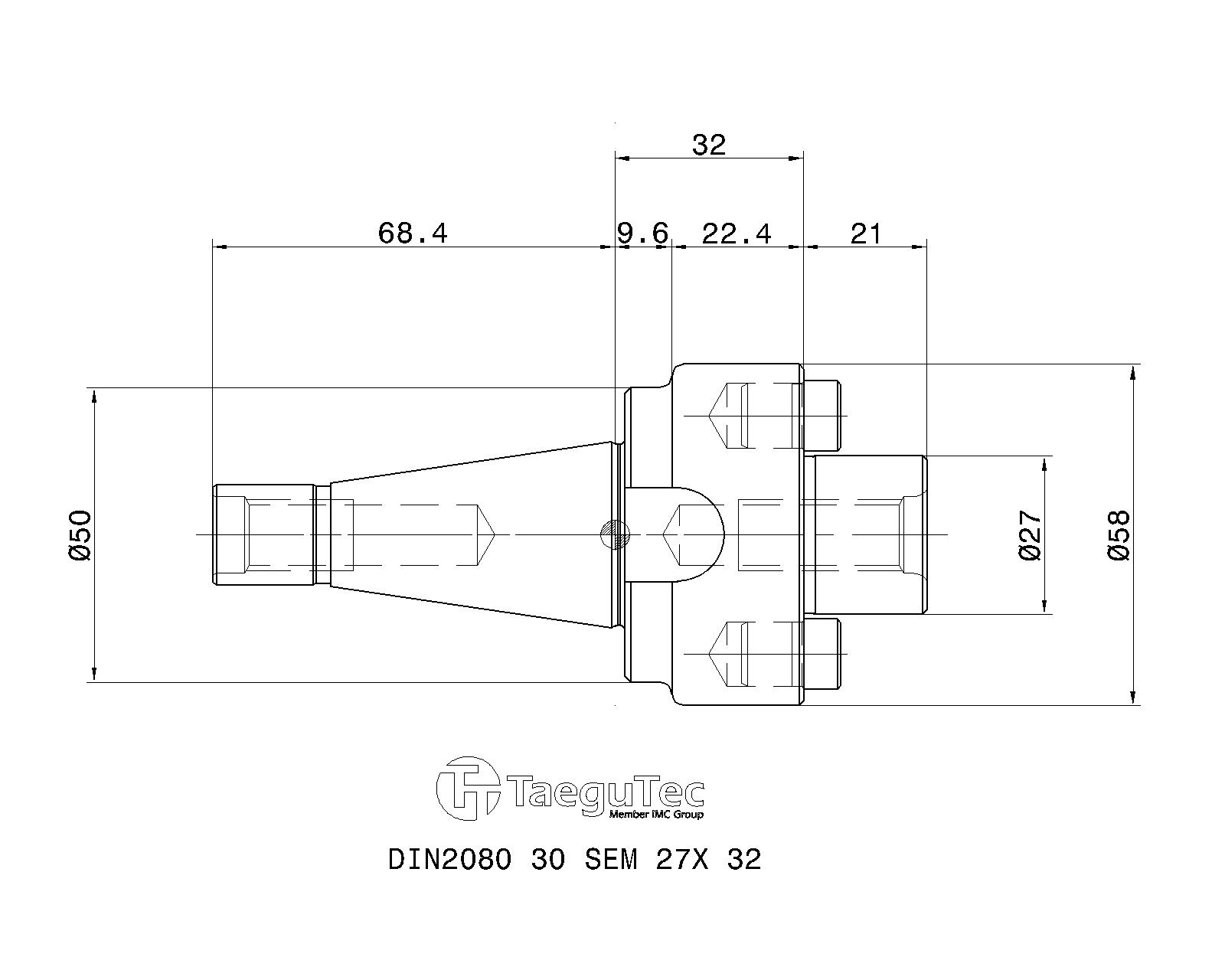

2D Representation
